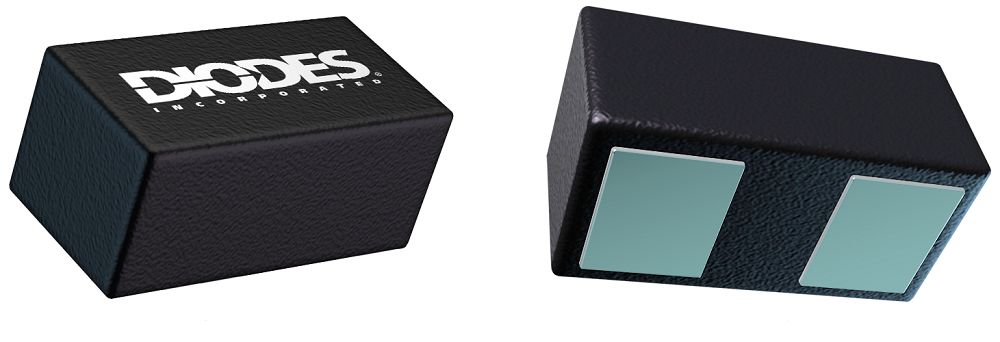

Zener Diode X3-DFN0603-2 T&R 10K

GDZ18LP3-7 Zener Diode X3-DFN0603-2 T&R 10K
DiodesZetex

Product Information

Nominal Zener Voltage:
18V
Dimensions:
0.62 x 0.32 x 0.28mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
250mW
Maximum Reverse Leakage Current:
100nA
Automotive Standard:
AEC-Q101
Package Type:
X3-DFN0603
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Zener Type:
Ultra Small
Zener Voltage Tolerance:
±5%
Maximum Operating Temperature:
+150 °C
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is Zener Diode X3-DFN0603-2 T&R 10K manufactured by DiodesZetex. The manufacturer part number is GDZ18LP3-7. Its nominal Zener voltage is 18v. The given dimensions of the product include 0.62 x 0.32 x 0.28mm. The product is available in surface mount configuration. Provides up to 250mw maximum power dissipation. The product has a maximum 100na of reverse leakage current. The product complies with automotive standard - aec-q101. The package is a sort of x3-dfn0603. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The Zener is a type of ultra small Zener with unique features. It has ±5% Zener voltage tolerance. It has a maximum operating temperature of +150 °c. It contains 2 pins. In addition, it has 5ma test current.

pdf icon
Datasheet GDZ18LP3-7(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search GDZ18LP3-7 on website for other similar products.
We accept all major payment methods for all products including ET17497838. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with GDZ18LP3-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Zener Diode X3-DFN0603-2 T&R 10K. You can also check on our website or by contacting our customer support team for further order details on Zener Diode X3-DFN0603-2 T&R 10K.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17497838 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17497838.
Yes. We ship GDZ18LP3-7 Internationally to many countries around the world.
