Transistor Type:
PNP
Dimensions:
5.2 x 4.19 x 5.33mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
500 mW
Maximum Collector Base Voltage:
-50 V
Maximum Collector Emitter Voltage:
-45 V
Maximum Operating Frequency:
10 MHz
Maximum Emitter Base Voltage:
-5 V

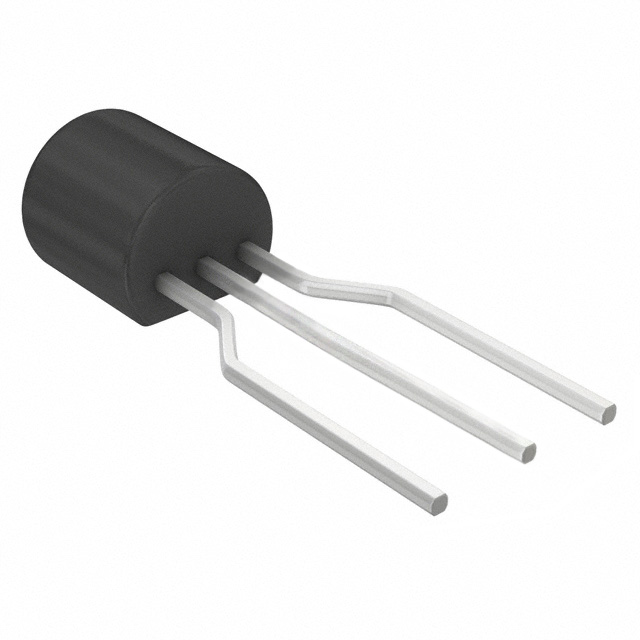

Package Type:
TO-92
Number of Elements per Chip:
1
Maximum DC Collector Current:
-100 mA
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
Current - Collector (Ic) (Max):
100 mA
HTSUS:
8541.21.0075
RoHS Status:
ROHS3 Compliant
Voltage - Collector Emitter Breakdown (Max):
45 V
Operating Temperature:
150°C (TJ)
Package / Case:
TO-226-3, TO-92-3 (TO-226AA) Formed Leads
DC Current Gain (hFE) (Min) @ Ic, Vce:
200 @ 2mA, 5V
Frequency - Transition:
150MHz
REACH Status:
REACH Unaffected
edacadModel:
BC557BTF Models
edacadModelUrl:
/en/models/975577
Transistor Type:
PNP
Vce Saturation (Max) @ Ib, Ic:
650mV @ 5mA, 100mA
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
14 Weeks
Current - Collector Cutoff (Max):
15nA (ICBO)
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-92-3
Packaging:
Tape & Reel (TR)
Power - Max:
500 mW
Base Product Number:
BC557
ECCN:
EAR99
