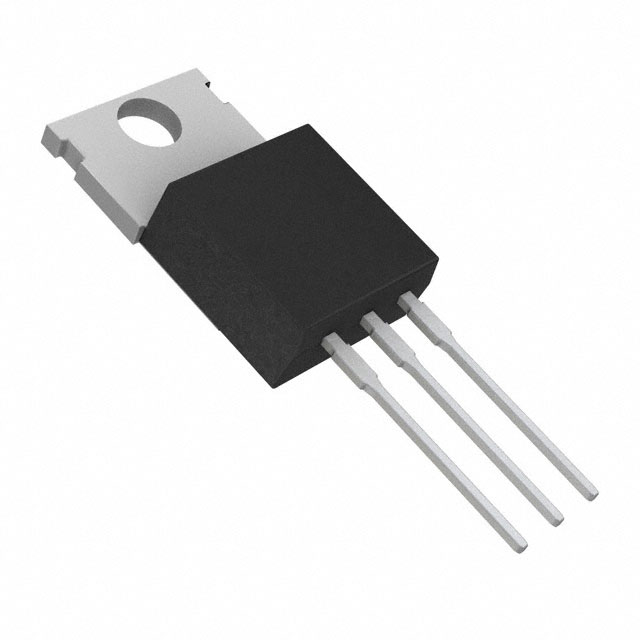

onsemi TIP31AG NPN Transistor, 3 A, 60 V, 3-Pin TO-220AB

TIP31AG onsemi  NPN Transistor, 3 A, 60 V, 3-Pin TO-220AB
TIP31AG
onsemi

Product Information

Minimum DC Current Gain:
10
Transistor Type:
NPN
Dimensions:
10.28 x 4.82 x 15.75mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
40 W
Maximum Collector Base Voltage:
60 V
Maximum Collector Emitter Voltage:
60 V
Maximum Operating Frequency:
1 MHz
Maximum Emitter Base Voltage:
5 V
Package Type:
TO-220AB
Number of Elements per Chip:
1
Maximum DC Collector Current:
3 A
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
Current - Collector (Ic) (Max):
3 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Voltage - Collector Emitter Breakdown (Max):
60 V
Operating Temperature:
-65°C ~ 150°C (TJ)
Package / Case:
TO-220-3
DC Current Gain (hFE) (Min) @ Ic, Vce:
10 @ 3A, 4V
Frequency - Transition:
3MHz
title:
TIP31AG
REACH Status:
REACH Unaffected
edacadModel:
TIP31AG Models
edacadModelUrl:
/en/models/920339
Transistor Type:
NPN
Vce Saturation (Max) @ Ib, Ic:
1.2V @ 375mA, 3A
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
6 Weeks
Current - Collector Cutoff (Max):
300µA
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-220
Packaging:
Tube
Power - Max:
2 W
Base Product Number:
TIP31
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is NPN Transistor 3 A 60 V 3-Pin TO-220AB manufactured by onsemi. The manufacturer part number is TIP31AG. It features up to 10 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 10.28 x 4.82 x 15.75mm. The product is available in through hole configuration. Provides up to 40 w maximum power dissipation. Additionally, it has 60 v maximum collector base voltage. Whereas features a 60 v of collector emitter voltage (max). It carries 1 mhz of maximum operating frequency. It features a 5 v of maximum emitter base voltage. The package is a sort of to-220ab. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 3 a. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration. The maximum collector current includes 3 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. The maximum collector emitter breakdown voltage of the product is 60 v. The product has -65°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in to-220-3. Furthermore, 10 @ 3a, 4v is the minimum DC current gain at given voltage. The transition frequency of the product is 3mhz. In addition, it is reach unaffected. The 1.2v @ 375ma, 3a is the maximum Vce saturation. Its typical moisture sensitivity level is not applicable. It has a long 6 weeks standard lead time. In addition, 300µa is the maximum current at collector cutoff. to-220 is the supplier device package value. In addition, tube is the available packaging type of the product. The maximum power of the product is 2 w. Moreover, it corresponds to tip31, a base product number of the product. The product is designated with the ear99 code number.
