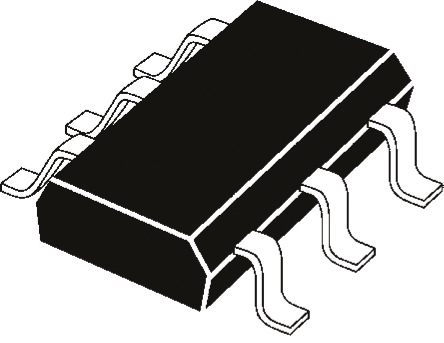

ROHM, UMD22NTR, Dual NPN + PNP Digital Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 0.1, 6-Pin SOT-363

Enrgtech Part No: ET16782869
|
Manufacturer Part No:
UMD22NTR
|
Manufacturer: ROHM

UMD22NTR ROHM, , Dual NPN + PNP Digital Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 0.1, 6-Pin SOT-363

Product Information

Base-Emitter Resistor:

47kΩ

Transistor Type:

NPN/PNP

Dimensions:

2.1 x 1.35 x 0.9mm

Mounting Type:

Surface Mount

Maximum Power Dissipation:

150 mW

Maximum Collector Emitter Voltage:

50 V

Maximum Emitter Base Voltage:

5 V

Package Type:

SOT-363 (SC-88)

Number of Elements per Chip:

Maximum DC Collector Current:

100 mA

Typical Resistor Ratio:

0.1

Transistor Configuration:

Isolated

Checking for live stock

This is Dual NPN + PNP Digital Transistor 100 mA 50 V 4.7 kΩ Ratio Of 0.1 6-Pin SOT-363 manufactured by ROHM. The manufacturer part number is UMD22NTR. It has about 47kω base-emitter resistor . The transistor is a npn/pnp type. The given dimensions of the product include 2.1 x 1.35 x 0.9mm. The product is available in surface mount configuration. Provides up to 150 mw maximum power dissipation. Whereas features a 50 v of collector emitter voltage (max). It features a 5 v of maximum emitter base voltage. The package is a sort of sot-363 (sc-88). It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 100 ma. In addition, it has a typical 0.1 resistor ratio . The product offers isolated transistor configuration. It has a maximum operating temperature of +150 °c. It contains 6 pins. Whereas, it has a typical 4.7 kω input resistor .

EMD22-UMD22N Complex Digital NPN/PNP Transistor(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search UMD22NTR on website for other similar products.

We accept all major payment methods for all products including ET16782869. Please check your shopping cart at the time of order.

You can order ROHM brand products with UMD22NTR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of ROHM, UMD22NTR, Dual NPN + PNP Digital Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 0.1, 6-Pin SOT-363. You can also check on our website or by contacting our customer support team for further order details on ROHM, UMD22NTR, Dual NPN + PNP Digital Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 0.1, 6-Pin SOT-363.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET16782869 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ROHM" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16782869.

Yes. We ship UMD22NTR Internationally to many countries around the world.
