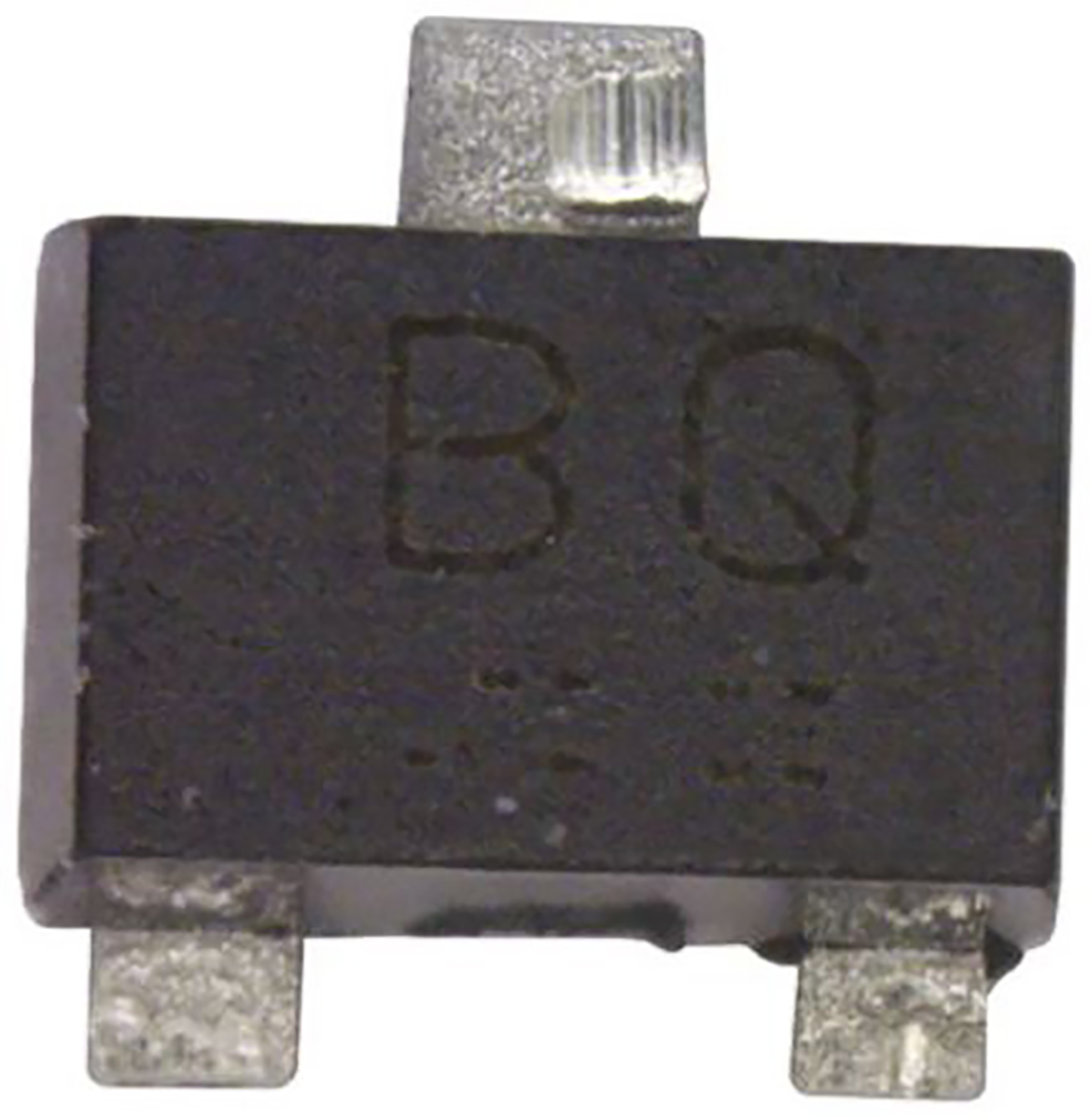

ROHM 2SCR502UBTL NPN Transistor, 500 mA, 30 V, 3-Pin SOT-323FL

2SCR502UBTL ROHM  NPN Transistor, 500 mA, 30 V, 3-Pin SOT-323FL
2SCR502UBTL
ROHM

Product Information

Minimum DC Current Gain:
200
Transistor Type:
NPN
Dimensions:
2.1 x 1.35 x 1mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
200 mW
Maximum Collector Base Voltage:
30 V
Maximum Collector Emitter Voltage:
30 V
Maximum Operating Frequency:
100 MHz
Maximum Emitter Base Voltage:
6 V
Package Type:
SOT-323FL
Number of Elements per Chip:
1
Maximum DC Collector Current:
500 mA
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Common Emitter
RoHs Compliant
Checking for live stock

This is NPN Transistor 500 mA 30 V 3-Pin SOT-323FL manufactured by ROHM. The manufacturer part number is 2SCR502UBTL. It features up to 200 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 2.1 x 1.35 x 1mm. The product is available in surface mount configuration. Provides up to 200 mw maximum power dissipation. Additionally, it has 30 v maximum collector base voltage. Whereas features a 30 v of collector emitter voltage (max). It carries 100 mhz of maximum operating frequency. It features a 6 v of maximum emitter base voltage. The package is a sort of sot-323fl. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 500 ma. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers common emitter transistor configuration.
