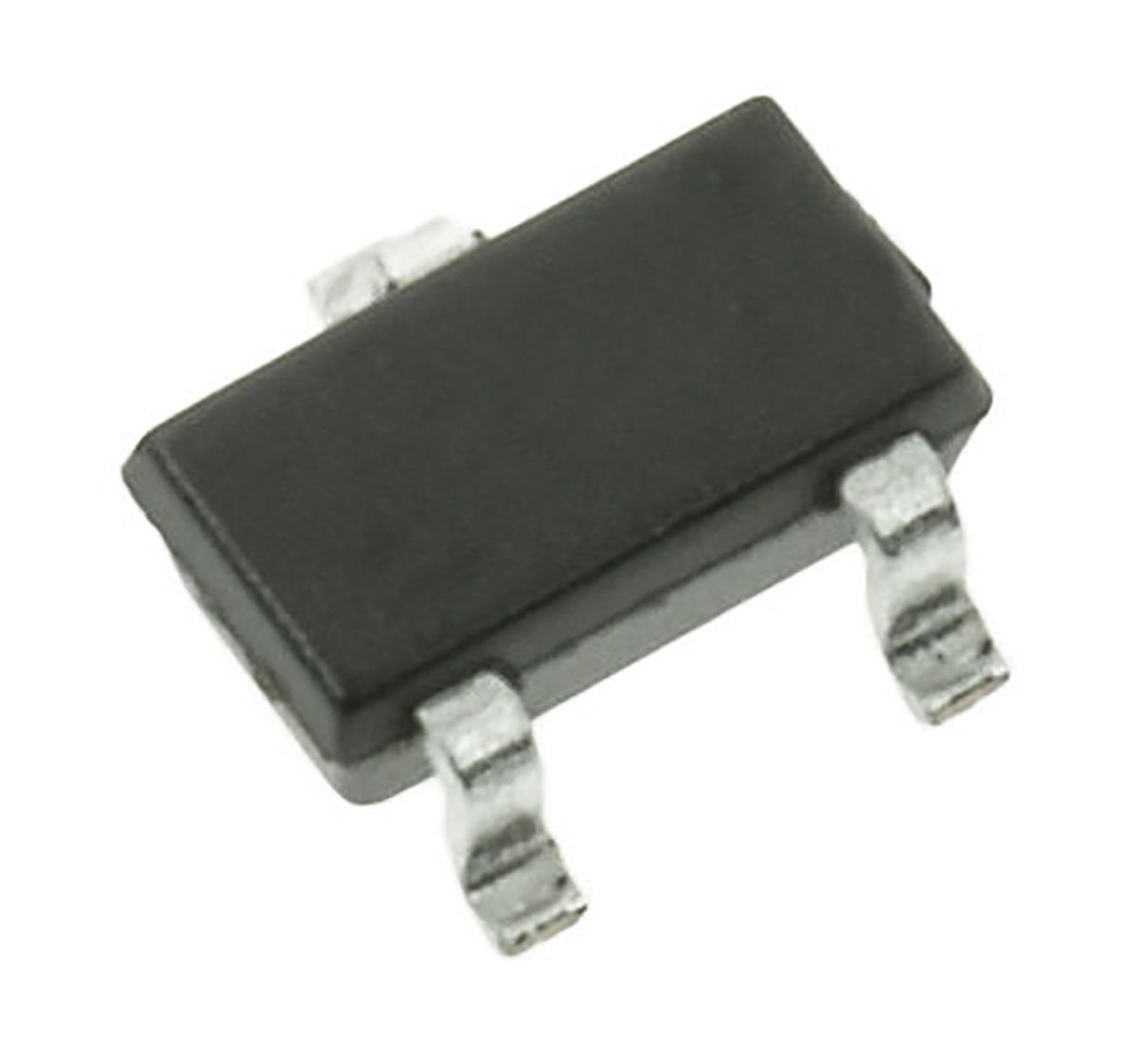

ROHM 2SB1198KT146Q/R PNP Transistor, 0.5 A, 80 V, 3-Pin SC-59

Enrgtech Part No: ET14128377
|
Manufacturer Part No:
2SB1198KT146Q/R
|
Manufacturer: ROHM

2SB1198KT146Q-R ROHM 2SB1198KT146Q/R PNP Transistor, 0.5 A, 80 V, 3-Pin SC-59

Product Information

Transistor Type:

PNP

Dimensions:

2.9 x 1.6 x 1.1mm

Mounting Type:

Surface Mount

Maximum Power Dissipation:

200 mW

Maximum Collector Base Voltage:

-80 V

Maximum Collector Emitter Voltage:

-80 V

Maximum Operating Frequency:

180 MHz

Maximum Emitter Base Voltage:

-5 V

Package Type:

SOT-346 (SC-59)

Number of Elements per Chip:

Maximum DC Collector Current:

-500 mA

Maximum Operating Temperature:

+150 °C

Checking for live stock

This is PNP Transistor 0.5 A 80 V 3-Pin SC-59 manufactured by ROHM. The manufacturer part number is 2SB1198KT146Q/R. The transistor is a pnp type. The given dimensions of the product include 2.9 x 1.6 x 1.1mm. The product is available in surface mount configuration. Provides up to 200 mw maximum power dissipation. Additionally, it has -80 v maximum collector base voltage. Whereas features a -80 v of collector emitter voltage (max). It carries 180 mhz of maximum operating frequency. It features a -5 v of maximum emitter base voltage. The package is a sort of sot-346 (sc-59). It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of -500 ma. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.
