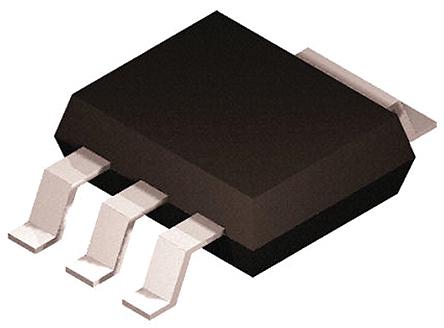

Taiwan Semiconductor TSC966CW RPG NPN Transistor, 0.3 A, 400 V SOT-223

Enrgtech Part No: ET14066694
|
Manufacturer Part No:
TSC966CW RPG
|
Manufacturer: Taiwan Semiconductor

TSC966CW-RPG Taiwan Semiconductor TSC966CW RPG NPN Transistor, 0.3 A, 400 V SOT-223

Product Information

Transistor Type:

NPN

Dimensions:

6.5 x 3.5 x 1.65mm

Mounting Type:

Surface Mount

Maximum Power Dissipation:

1 W

Maximum Collector Base Voltage:

600 V

Maximum Collector Emitter Voltage:

400 V

Maximum Operating Frequency:

1 MHz

Maximum Emitter Base Voltage:

7 V

Package Type:

SOT-223 (SC-73)

Number of Elements per Chip:

Maximum DC Collector Current:

300 mA

Maximum Operating Temperature:

+150 °C

Checking for live stock

This is NPN Transistor 0.3 A 400 V SOT-223 manufactured by Taiwan Semiconductor. The manufacturer part number is TSC966CW RPG. The transistor is a npn type. The given dimensions of the product include 6.5 x 3.5 x 1.65mm. The product is available in surface mount configuration. Provides up to 1 w maximum power dissipation. Additionally, it has 600 v maximum collector base voltage. Whereas features a 400 v of collector emitter voltage (max). It carries 1 mhz of maximum operating frequency. It features a 7 v of maximum emitter base voltage. The package is a sort of sot-223 (sc-73). It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 300 ma. It has a maximum operating temperature of +150 °c. It contains 3 + tab pins. The product offers single transistor configuration.

ESD Control Selection Guide V1(Technical Reference)

TSC966, NPN Silicon Planar High Voltage Transistor(Technical Reference)
