Name: MAT12AHZ, Analog Devices
Brand: Analog Devices
SKU: ET13856635
Price: 26.88 GBP
Availability: Discontinued

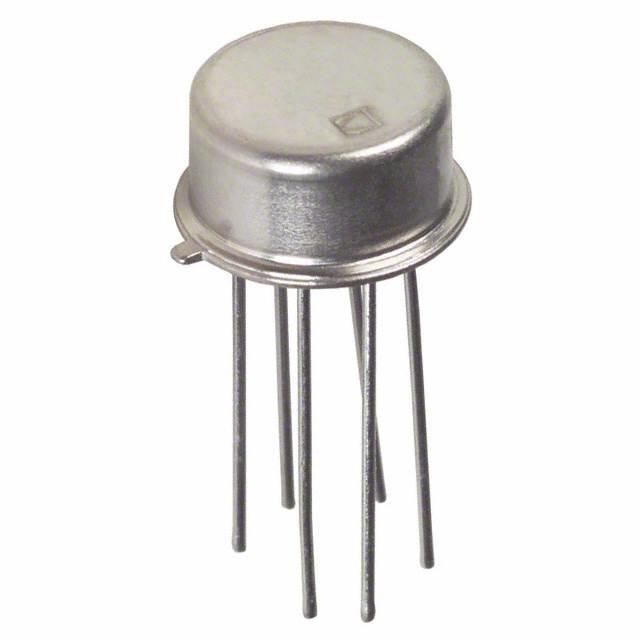

MAT12AHZ Analog Devices Dual NPN Matched Bipolar Transistor, 20 mA, 10 V, 6-Pin TO-78

(0)

Product Information

Transistor Type:

NPN

Dimensions:

9.4 (Dia.) x 4.7mm

Mounting Type:

Through Hole

Maximum Collector Base Voltage:

15 V

Maximum Operating Frequency:

200 MHz

Maximum Collector Emitter Voltage:

10 V

Package Type:

TO-78

Number of Elements per Chip:

Maximum DC Collector Current:

20 mA

Maximum Operating Temperature:

+85 °C

Pin Count:

Transistor Configuration:

Isolated

Checking for live stock

This is Dual NPN Matched Bipolar Transistor 20 mA 10 V 6-Pin TO-78 manufactured by Analog Devices. The manufacturer part number is MAT12AHZ. The transistor is a npn type. The given dimensions of the product include 9.4 (dia.) x 4.7mm. The product is available in through hole configuration. Additionally, it has 15 v maximum collector base voltage. It carries 200 mhz of maximum operating frequency. Whereas features a 10 v of collector emitter voltage (max). The package is a sort of to-78. It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 20 ma. It has a maximum operating temperature of +85 °c. It contains 6 pins. The product offers isolated transistor configuration.

MAT12 Audio, Dual-Matched NPN Transistor Data Sheet(Technical Reference)

MAT12 SPICE Macro Model(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
