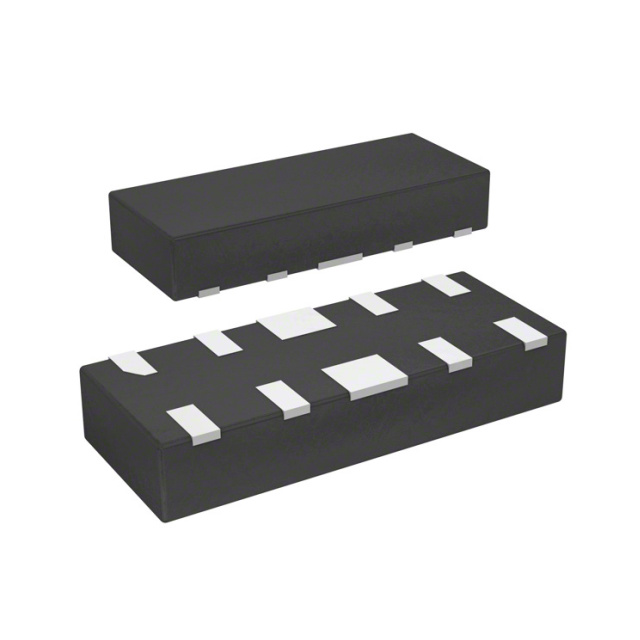

WeEn Semiconductors ESDALD05UG4X

ESDALD05UG4X WeEn Semiconductors
WeEn Semiconductors

Product Information

Voltage - Clamping (Max) @ Ipp:
15V
HTSUS:
8541.10.0080
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
10-UFDFN
Type:
Steering (Rail to Rail)
title:
ESDALD05UG4X
Voltage - Breakdown (Min):
6V
edacadModel:
ESDALD05UG4X Models
Applications:
DVI, HDMI, USB
edacadModelUrl:
/en/models/15775767
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
4
standardLeadTime:
20 Weeks
Current - Peak Pulse (10/1000µs):
4A (8/20µs)
Voltage - Reverse Standoff (Typ):
5V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
DFN2510
Packaging:
Tape & Reel (TR)
Capacitance @ Frequency:
0.6pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
60W
Base Product Number:
ESDALD05
ECCN:
EAR99
Checking for live stock

This is manufactured by WeEn Semiconductors. The manufacturer part number is ESDALD05UG4X. The maximum clamping voltage is 15v. It is assigned with possible HTSUS value of 8541.10.0080. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 10-ufdfn. It comes in steering (rail to rail) configuration. The minimum breakdown voltage is 6v. The product is widely employed in dvi, hdmi, usb. Its typical moisture sensitivity level is 1 (unlimited). It has 4 unidirectional channels. It has a long 20 weeks standard lead time. The peak pulse of the product is given as 4a (8/20µs). Provide with the typical reverse standoff voltage of 5v (max). The product is available in surface mount configuration. dfn2510 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. It has a nominal capacitance and frequency values of 0.6pf @ 1mhz. Power Line Protection: no. Furthermore, the peak pulse power of the product is 60w. Moreover, it corresponds to esdald05, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
ESDALD05UG4(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search ESDALD05UG4X on website for other similar products.
We accept all major payment methods for all products including ET22623792. Please check your shopping cart at the time of order.
You can order WeEn Semiconductors brand products with ESDALD05UG4X directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of WeEn Semiconductors ESDALD05UG4X. You can also check on our website or by contacting our customer support team for further order details on WeEn Semiconductors ESDALD05UG4X.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22623792 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "WeEn Semiconductors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22623792.
Yes. We ship ESDALD05UG4X Internationally to many countries around the world.
