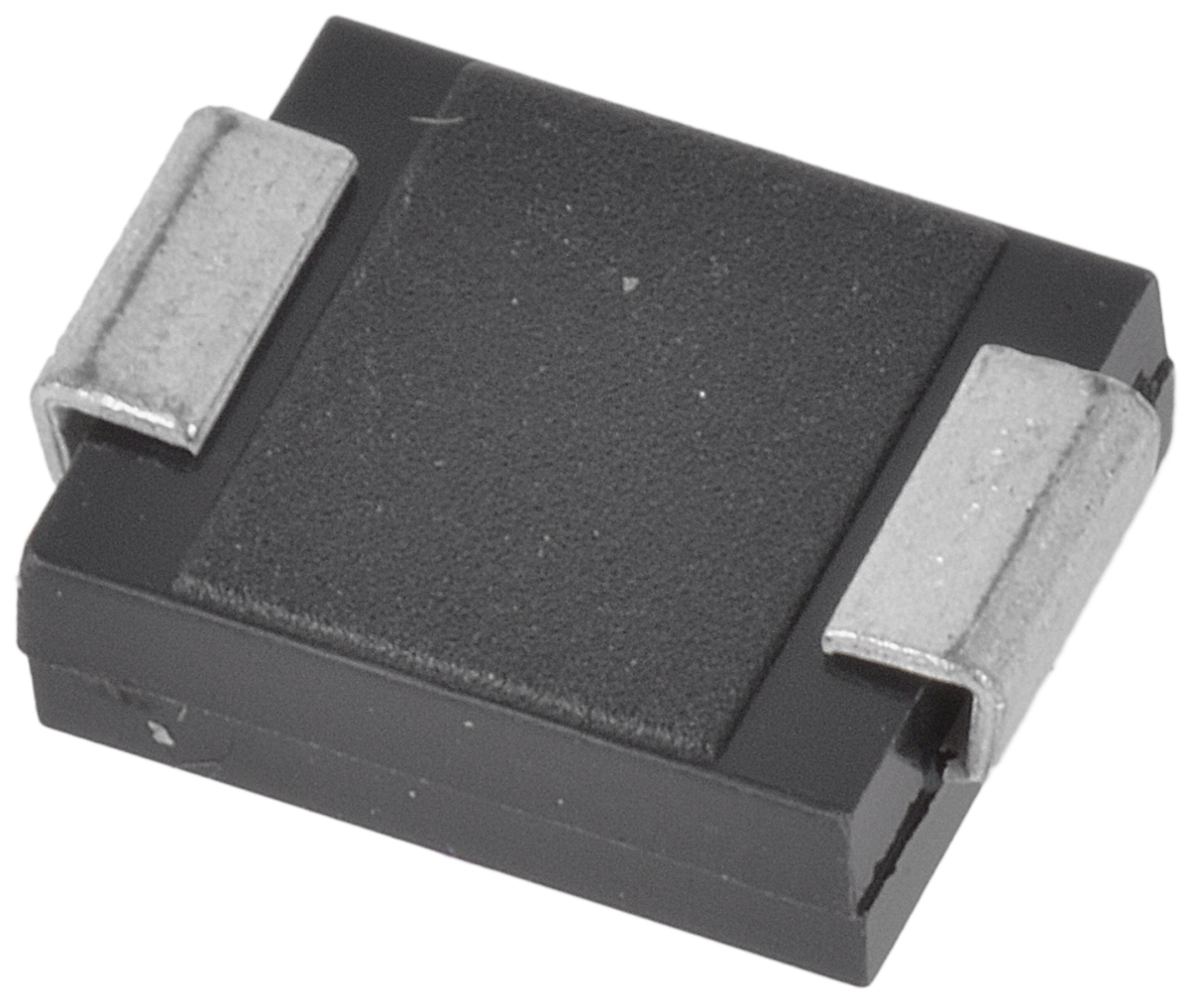

Taiwan Semi SMCJ30A, Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB

SMCJ30A Taiwan Semi , Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB
SMCJ30A
Taiwan Semiconductor

Product Information

Maximum Peak Pulse Current:
31A
Maximum Reverse Stand-off Voltage:
30V
Dimensions:
7.15 x 6.25 x 2.75mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
5µA
Minimum Breakdown Voltage:
33.3V
Peak Pulse Power Dissipation:
1500W
Height:
2.75mm
Width:
6.25mm
Length:
7.15mm
Package Type:
DO-214AB (SMC)
Number of Elements per Chip:
1
Maximum Clamping Voltage:
48.4V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Taiwan Semi Uni-Directional TVS Diode 1500W 2-Pin DO-214AB manufactured by Taiwan Semiconductor. The manufacturer part number is SMCJ30A. It also has 31a maximum peak pulse current. While the maximised reverse stand-off voltage includes 30v. The given dimensions of the product include 7.15 x 6.25 x 2.75mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 5µa of reverse leakage current. It harbours a 33.3v of minimum breakdown voltage. It has 1500w of peak pulse power dissipation. In addition, the height is 2.75mm. Furthermore, the product is 6.25mm wide. Its accurate length is 7.15mm. The package is a sort of do-214ab (smc). It consists of 1 elements per chip. It is supplied with 48.4v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
SMCJ5V0(C)A - SMCJ170(C)A, 1500W Transient Voltage Suppressor Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
