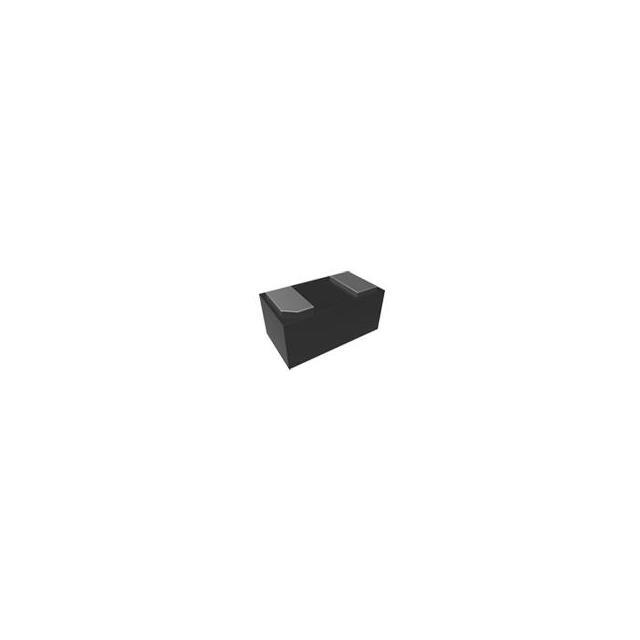

Micro Commercial Co ESDPLC5V0AE2-TP

ESDPLC5V0AE2-TP Micro Commercial Co
Micro Commercial Co

Product Information

Voltage - Clamping (Max) @ Ipp:
15V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
0201 (0603 Metric)
Type:
Zener
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
6.5V
Applications:
General Purpose
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Bidirectional Channels:
1
standardLeadTime:
14 Weeks
Current - Peak Pulse (10/1000µs):
3A (8/20µs)
Voltage - Reverse Standoff (Typ):
5.5V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
0201-A
Capacitance @ Frequency:
0.15pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
40W
Base Product Number:
ESDPLC5
ECCN:
EAR99
Checking for live stock

This is manufactured by Micro Commercial Co. The manufacturer part number is ESDPLC5V0AE2-TP. The maximum clamping voltage is 15v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 0201 (0603 metric). It comes in zener configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 6.5v. The product is widely employed in general purpose. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The product has 1 bidirectional channels. It has a long 14 weeks standard lead time. The peak pulse of the product is given as 3a (8/20µs). Provide with the typical reverse standoff voltage of 5.5v (max). The product is available in surface mount configuration. 0201-a is the supplier device package value. It has a nominal capacitance and frequency values of 0.15pf @ 1mhz. Power Line Protection: no. Furthermore, the peak pulse power of the product is 40w. Moreover, it corresponds to esdplc5, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
ESDPLC5V0AE2(Datasheets)
pdf icon
Halogen by Pkg Type 02/Sep/2023(PCN Design/Specification)
pdf icon
Micro Commercial CA Prop65(Environmental Information)
pdf icon
Micro Commercial RoHS(Environmental Information)
pdf icon
Micro Commercial REACH(Environmental Information)
