Dimensions:
3.95 x 4.6 x 1.05mm
Direction Type:
Uni-Directional
Capacitance:
150pF
Height:
1.05mm
Diode Configuration:
Single
Test Current:
1mA
Maximum Peak Pulse Current:
147A
Minimum Breakdown Voltage:
14.4V
ESD Voltage:
30kV
Maximum Reverse Leakage Current:
1µA
Package Type:
SMB Flat (DO221-AA)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+175 °C
ESD Protection:
Yes
Length:
3.95mm
Pin Count:
2
Peak Pulse Power Dissipation:
600W
Maximum Reverse Stand-off Voltage:
13V
Mounting Type:
Surface Mount
Width:
4.6mm
Maximum Clamping Voltage:
27.2V
Working Voltage:
13V
Minimum Operating Temperature:
-55 °C
Voltage - Clamping (Max) @ Ipp:
21.5V
HTSUS:
8541.10.0080
Operating Temperature:
-55°C ~ 175°C (TJ)
Package / Case:
DO-221AA, SMB Flat Leads
Type:
Zener
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
14.4V
Applications:
-
Package:
Tape & Reel (TR)
Voltage - Reverse Standoff (Typ):
13V (Max)
Qualification:
AEC-Q101
Unidirectional Channels:
1
Current - Peak Pulse (10/1000µs):
29A
Mounting Type:
Surface Mount
Grade:
Automotive
Series:
SMB6FxxAY
Supplier Device Package:
SMBflat
Capacitance @ Frequency:
-
Power Line Protection:
No
Power - Peak Pulse:
600W
Base Product Number:
SMB6F13
ECCN:
EAR99

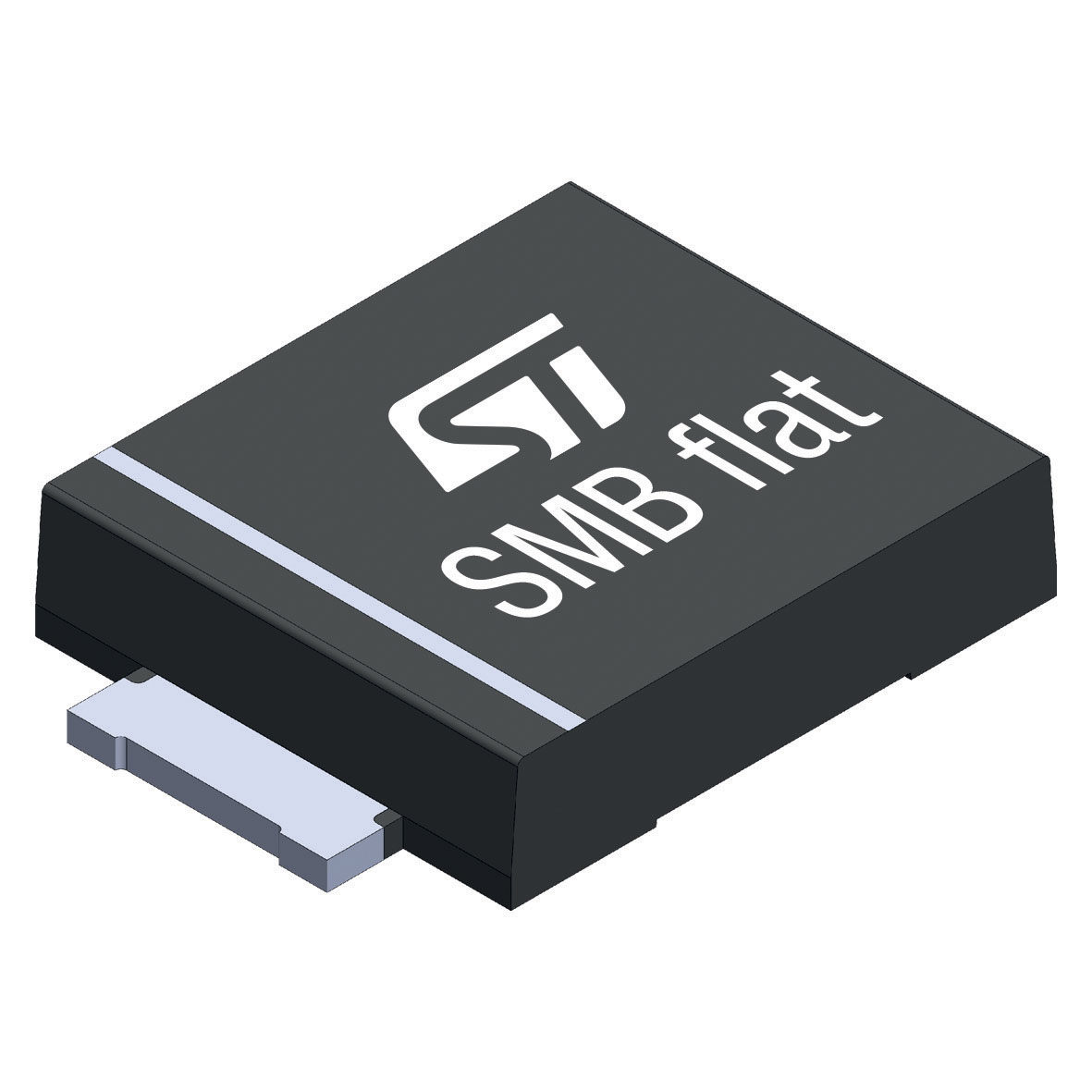

This is manufactured by STMicroelectronics. The manufacturer part number is SMB6F13AY. The given dimensions of the product include 3.95 x 4.6 x 1.05mm. While is configured as uni-directional. It provides a 150pf of capacitance value. In addition, the height is 1.05mm. The diode features a single configuration. In addition, it has 1ma test current. It also has 147a maximum peak pulse current. It harbours a 14.4v of minimum breakdown voltage. Moreover, it has about 30kv ESD voltage . The product has a maximum 1µa of reverse leakage current. The package is a sort of smb flat (do221-aa). It consists of 1 elements per chip. It has a maximum operating temperature of +175 °c. ESD Protected - yes. Its accurate length is 3.95mm. It contains 2 pins. It has 600w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 13v. The product is available in surface mount configuration. Furthermore, the product is 4.6mm wide. It is supplied with 27.2v of maximum clamping voltage. It has about [Working Voltage] working voltage . Whereas, the minimum operating temperature of the product is -55 °c. The maximum clamping voltage is 21.5v. It is assigned with possible HTSUS value of 8541.10.0080. The product has -55°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in do-221aa, smb flat leads. It comes in zener configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 14.4v. It is shipped in tape & reel (tr) package . Provide with the typical reverse standoff voltage of 13v (max). It has 1 unidirectional channels. The peak pulse of the product is given as 29a. The product is automotive, a grade of class. The product smb6fxxay, is a highly preferred choice for users. smbflat is the supplier device package value. Power Line Protection: no. Furthermore, the peak pulse power of the product is 600w. Moreover, it corresponds to smb6f13, a base product number of the product. The product is designated with the ear99 code number.
