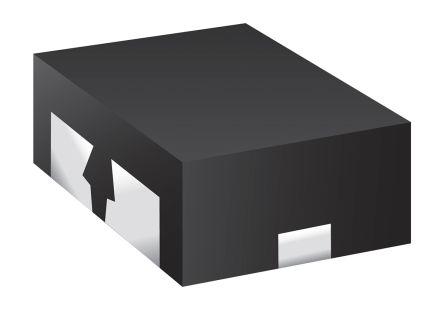

Bourns CGF0804TFH-R900-2L, Quad Bi-Directional EMI Filter & ESD Protector, 4-Pin 0804

CGF0804TFH-R900-2L Bourns , Quad Bi-Directional EMI Filter & ESD Protector, 4-Pin 0804
Bourns

Product Information

Dimensions:
0.85 x 0.65 x 0.4mm
Mounting Type:
Surface Mount
Capacitance:
0.6pF
Maximum Operating Temperature:
+85 °C
Maximum Reverse Leakage Current:
1µA
Direction Type:
Bi-Directional
Height:
0.4mm
Width:
0.65mm
Length:
0.85mm
Package Type:
0804
Number of Elements per Chip:
4
Minimum Operating Temperature:
-40 °C
ESD Protection:
Yes
Diode Configuration:
2x Common Cathode Pair
Pin Count:
4
RoHs Compliant
Checking for live stock

This is Quad Bi-Directional EMI Filter & ESD Protector 4-Pin 0804 manufactured by Bourns. The manufacturer part number is CGF0804TFH-R900-2L. The given dimensions of the product include 0.85 x 0.65 x 0.4mm. The product is available in surface mount configuration. It provides a 0.6pf of capacitance value. It has a maximum operating temperature of +85 °c. The product has a maximum 1µa of reverse leakage current. While is configured as bi-directional. In addition, the height is 0.4mm. Furthermore, the product is 0.65mm wide. Its accurate length is 0.85mm. The package is a sort of 0804. It consists of 4 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. ESD Protected - yes. The diode features a 2x common cathode pair configuration. It contains 4 pins.
