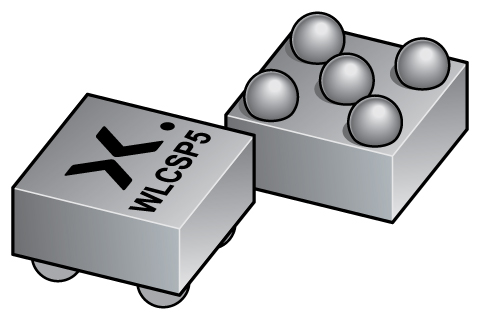

Nexperia PESD1USB3SZ, Dual ESD Protection Diode, 5-Pin WLCSP

PESD1USB3SZ Nexperia , Dual ESD Protection Diode, 5-Pin WLCSP
PESD1USB3SZ Nexperia , Dual ESD Protection Diode, 5-Pin WLCSP
Nexperia

Product Information

Automotive Standard:
AEC-Q101
Direction Type:
Uni-Directional
Series:
PESD
Maximum Reverse Leakage Current:
100nA
ESD Protection:
Yes
Minimum Breakdown Voltage Vbr:
6V
Height:
0.38mm
Width:
0.82 mm
Length:
1.22mm
Package Type:
WLCSP
Number of Elements per Chip:
2
Minimum Operating Temperature:
-40°C
Standards/Approvals:
IEC 61000-4-2
Maximum Peak Pulse Current Ippm:
8A
Product Type:
ESD Protection Diode
Maximum Operating Temperature:
85°C
Pin Count:
5
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is Dual ESD Protection Diode 5-Pin WLCSP manufactured by Nexperia. The manufacturer part number is PESD1USB3SZ. The product complies with automotive standard - aec-q101. While is configured as uni-directional. The product pesd, is a highly preferred choice for users. The product has a maximum 100na of reverse leakage current. ESD Protected - yes. In addition, the height is 0.38mm. Furthermore, the product is 0.82 mm wide. Its accurate length is 1.22mm. The package is a sort of wlcsp. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -40°c. esd protection diode is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 85°c. It contains 5 pins. It has a surface type mount .

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
