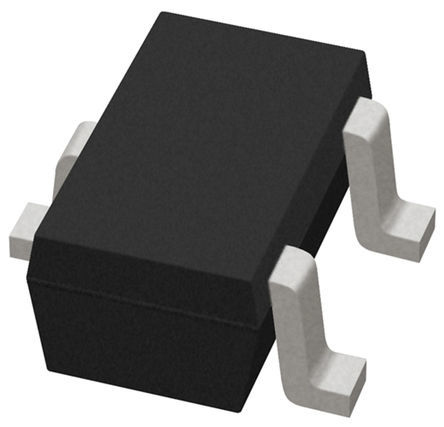

Nexperia PESD1CAN-UX, Quad Bi-Directional ESD Protection Diode, 150W, 3-Pin SOT-323

PESD1CAN-UX Nexperia , Quad Bi-Directional ESD Protection Diode, 150W, 3-Pin SOT-323
PESD1CAN-UX Nexperia , Quad Bi-Directional ESD Protection Diode, 150W, 3-Pin SOT-323
Nexperia

Product Information

Direction Type:
Bi-Directional
Maximum Peak Pulse Current Ippm:
3A
Width:
1.35 mm
Maximum Reverse Stand-off Voltage Vwm:
24V
Peak Pulse Power Dissipation Pppm:
150W
Diode Configuration:
Common Cathode
Automotive Standard:
AEC-Q101
Maximum Reverse Leakage Current:
50nA
Clamping Voltage VC:
50V
Package Type:
SOT-323
Number of Elements per Chip:
4
Product Type:
ESD Protection Diode
Maximum Operating Temperature:
150°C
ESD Protection:
Yes
Minimum Breakdown Voltage Vbr:
25.4V
Length:
2.2mm
Standards/Approvals:
No
Pin Count:
3
Mount Type:
Surface
Series:
PESD
Height:
1.1mm
Minimum Operating Temperature:
-55°C
Test Current It:
3A
RoHs Compliant
Checking for live stock

This is Quad Bi-Directional ESD Protection Diode 150W 3-Pin SOT-323 manufactured by Nexperia. The manufacturer part number is PESD1CAN-UX. While is configured as bi-directional. Furthermore, the product is 1.35 mm wide. The diode features a common cathode configuration. The product complies with automotive standard - aec-q101. The product has a maximum 50na of reverse leakage current. The package is a sort of sot-323. It consists of 4 elements per chip. esd protection diode is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. ESD Protected - yes. Its accurate length is 2.2mm. It contains 3 pins. It has a surface type mount . The product pesd, is a highly preferred choice for users. In addition, the height is 1.1mm. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
PESD1CAN-U, CAN Bus ESD Protection Diode(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
