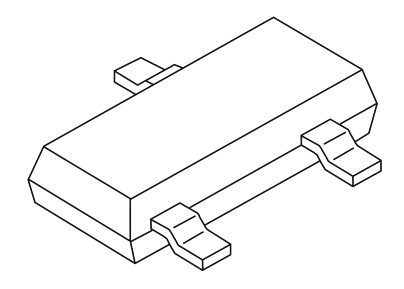

Nexperia ESD Protection Diode Uni-Directional, 24W Dual, 3-Pin SOT-23 MMBZ9V1AL,215,

MMBZ9V1AL-215 Nexperia ESD Protection Diode Uni-Directional, 24W Dual, 3-Pin SOT-23 MMBZ9V1AL,215,
MMBZ9V1AL-215 Nexperia ESD Protection Diode Uni-Directional, 24W Dual, 3-Pin SOT-23 MMBZ9V1AL,215,
Nexperia

Product Information

Direction Type:
Uni-Directional
Maximum Peak Pulse Current Ippm:
1.7A
Maximum Reverse Stand-off Voltage Vwm:
6V
Peak Pulse Power Dissipation Pppm:
24W
Diode Configuration:
Dual
Automotive Standard:
AEC-Q101
Maximum Reverse Leakage Current:
100nA
Clamping Voltage VC:
14V
Package Type:
SOT-23
Number of Elements per Chip:
2
Product Type:
ESD Protection Diode
Maximum Operating Temperature:
150?C
ESD Protection:
Yes
Minimum Breakdown Voltage Vbr:
8.65V
Length:
3mm
Standards/Approvals:
No
Pin Count:
3
Mount Type:
Surface
Series:
MMBZ
Height:
1.1mm
Minimum Operating Temperature:
-55?C
Test Current It:
1mA
RoHs Compliant
Pre-order available

Ask for lead time

Each (In a Pack of 150)

Quantity
Unit Price (ex VAT)
Price
150
£ 0.026
£ 3.90
Mfr Part No:
MMBZ9V1AL,215
Seller:
Nexperia
Origin:
Warranty:
Manufacturer
Data Code:
ET16800082
Order Today!
From: United Kingdom

This is ESD Protection Diode Uni-Directional 24W Dual 3-Pin SOT-23 manufactured by Nexperia. The manufacturer part number is MMBZ9V1AL,215. While is configured as uni-directional. The diode features a dual configuration. The product complies with automotive standard - aec-q101. The product has a maximum 100na of reverse leakage current. The package is a sort of sot-23. It consists of 2 elements per chip. esd protection diode is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150?c. ESD Protected - yes. Its accurate length is 3mm. It contains 3 pins. It has a surface type mount . The product mmbz, is a highly preferred choice for users. In addition, the height is 1.1mm. Whereas, the minimum operating temperature of the product is -55?c.

pdf icon
MMBZxAL Series Low Capacitance Unidirectional Double ESD Protection Diodes Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
