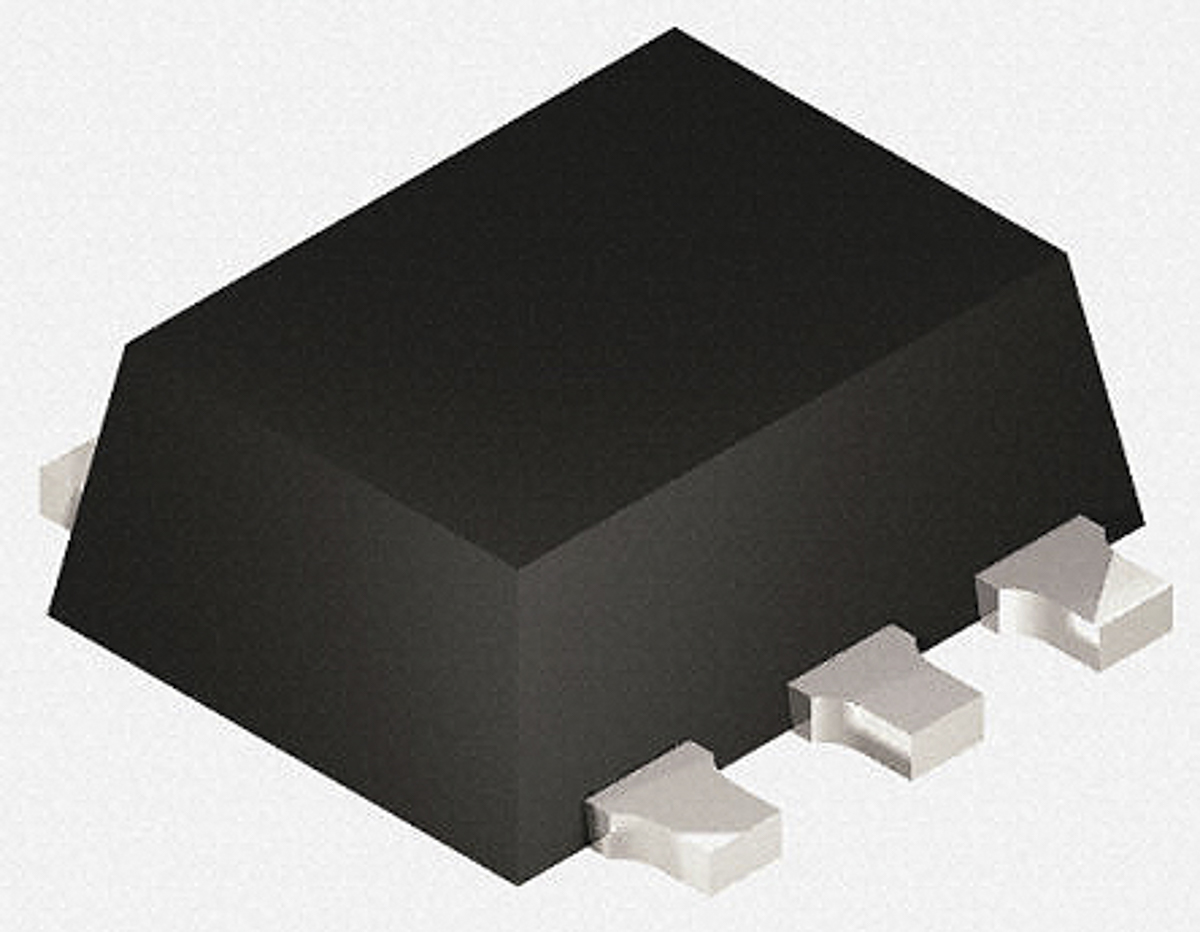

Littelfuse SP3003-02XTG, Quint Uni-Directional TVS Diode Array, 5-Pin SOT-553

SP3003-02XTG Littelfuse , Quint Uni-Directional TVS Diode Array, 5-Pin SOT-553
Littelfuse

Product Information

Maximum Peak Pulse Current:
2.5A
Maximum Reverse Stand-off Voltage:
6V
Dimensions:
1.7 x 1.3 x 0.6mm
Mounting Type:
Surface Mount
Capacitance:
0.95pF
Maximum Operating Temperature:
+125 °C
Maximum Reverse Leakage Current:
500nA
Direction Type:
Uni-Directional
Height:
0.6mm
Width:
1.3mm
Length:
1.7mm
Package Type:
SOT-553
Number of Elements per Chip:
5
Minimum Operating Temperature:
-40 °C
ESD Protection:
Yes
Maximum Clamping Voltage:
15V
Diode Configuration:
Array
Pin Count:
5
Test Current:
≤1µA
RoHs Compliant
Checking for live stock

This is Quint Uni-Directional TVS Diode Array 5-Pin SOT-553 manufactured by Littelfuse. The manufacturer part number is SP3003-02XTG. It also has 2.5a maximum peak pulse current. While the maximised reverse stand-off voltage includes 6v. The given dimensions of the product include 1.7 x 1.3 x 0.6mm. The product is available in surface mount configuration. It provides a 0.95pf of capacitance value. It has a maximum operating temperature of +125 °c. The product has a maximum 500na of reverse leakage current. While is configured as uni-directional. In addition, the height is 0.6mm. Furthermore, the product is 1.3mm wide. Its accurate length is 1.7mm. The package is a sort of sot-553. It consists of 5 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. ESD Protected - yes. It is supplied with 15v of maximum clamping voltage. The diode features a array configuration. It contains 5 pins. In addition, it has ≤1µa test current.
