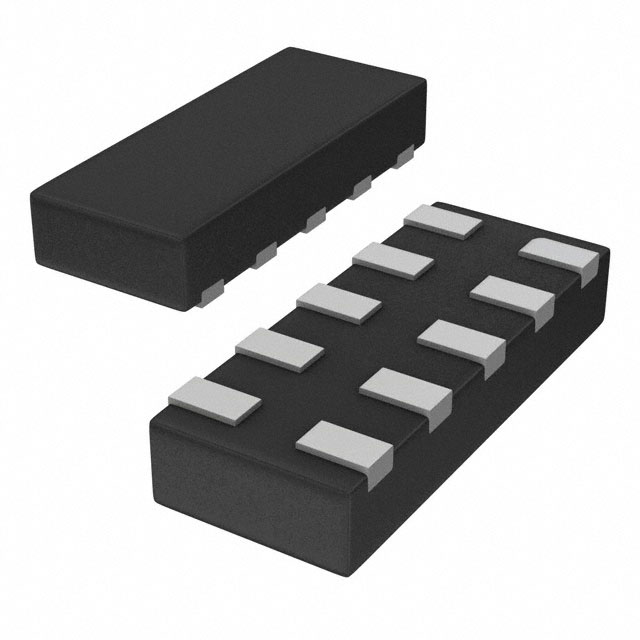

Nexperia USA Inc. PHDMI2F4X

PHDMI2F4X Nexperia USA Inc.
Nexperia USA Inc.

Product Information

Voltage - Clamping (Max) @ Ipp:
4.6V (Typ)
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C (TA)
Package / Case:
10-XFDFN
Type:
Steering (Rail to Rail)
title:
PHDMI2F4X
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
6V
Applications:
HDMI
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
4
Current - Peak Pulse (10/1000µs):
5.2A (8/20µs)
Voltage - Reverse Standoff (Typ):
-
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
DFN2510A-10
Packaging:
Tape & Reel (TR)
Capacitance @ Frequency:
-
Power Line Protection:
Yes
Power - Peak Pulse:
-
Base Product Number:
PHDMI2
ECCN:
EAR99
Checking for live stock

This is manufactured by Nexperia USA Inc.. The manufacturer part number is PHDMI2F4X. The maximum clamping voltage is 4.6v (typ). It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -40°c ~ 85°c (ta) operating temperature range. Moreover, the product comes in 10-xfdfn. It comes in steering (rail to rail) configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 6v. The product is widely employed in hdmi. Its typical moisture sensitivity level is 1 (unlimited). It has 4 unidirectional channels. The peak pulse of the product is given as 5.2a (8/20µs). The product is available in surface mount configuration. dfn2510a-10 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. Power Line Protection: yes. Moreover, it corresponds to phdmi2, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
location change 10/16/2023(PCN Assembly/Origin)
pdf icon
Mult DEV Label Change 12/Jun/2024(PCN Design/Specification)
pdf icon
PHDMI2F4(Datasheets)
pdf icon
Mult Dev ESD Bag Chg 11/Nov/2019(PCN Packaging)
pdf icon
All Dev Label Chgs 2/Aug/2020(PCN Packaging)
