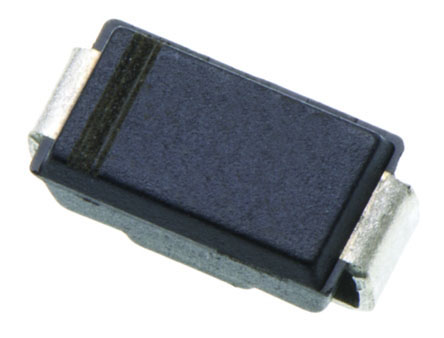

Taiwan Semi P4SMA15CA R2, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC

P4SMA15CA-R2 Taiwan Semi P4SMA15CA R2, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC
Taiwan Semiconductor

Product Information

Maximum Peak Pulse Current:
20A
Maximum Reverse Stand-off Voltage:
12.8V
Dimensions:
4.6 x 2.83 x 2.3mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
5µA
Minimum Breakdown Voltage:
14.3V
Peak Pulse Power Dissipation:
400W
Height:
2.3mm
Width:
2.83mm
Length:
4.6mm
Package Type:
DO-214AC (SMA)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
21.2V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Taiwan Semi Bi-Directional TVS Diode 400W 2-Pin DO-214AC manufactured by Taiwan Semiconductor. The manufacturer part number is P4SMA15CA R2. It also has 20a maximum peak pulse current. While the maximised reverse stand-off voltage includes 12.8v. The given dimensions of the product include 4.6 x 2.83 x 2.3mm. The product is available in surface mount configuration. While is configured as bi-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 5µa of reverse leakage current. It harbours a 14.3v of minimum breakdown voltage. It has 400w of peak pulse power dissipation. In addition, the height is 2.3mm. Furthermore, the product is 2.83mm wide. Its accurate length is 4.6mm. The package is a sort of do-214ac (sma). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 21.2v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
P4SMA Series, 400 Watts Suface Mount Transient Voltage Suppressor(Technical Reference)
