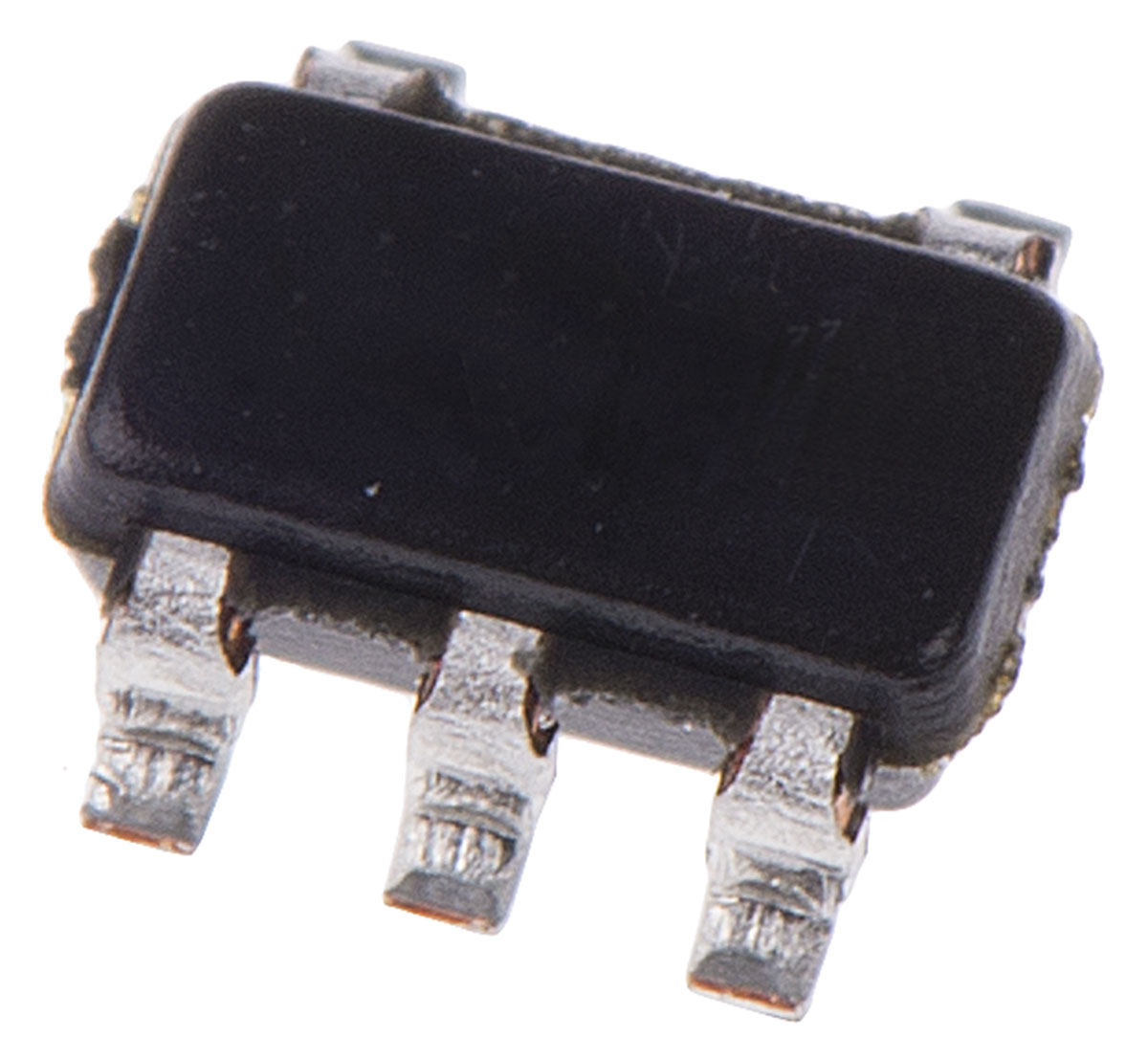

Littelfuse SP0504BAHTG, Quad Uni-Directional TVS Diode Array, 0.22W, 5-Pin SOT-23

SP0504BAHTG Littelfuse , Quad Uni-Directional TVS Diode Array, 0.22W, 5-Pin SOT-23
SP0504BAHTG
SP0504BAHTG Littelfuse , Quad Uni-Directional TVS Diode Array, 0.22W, 5-Pin SOT-23
Littelfuse

Product Information

Direction Type:
Uni-Directional
Width:
3 mm
Maximum Reverse Stand-off Voltage Vwm:
5.5V
Peak Pulse Power Dissipation Pppm:
0.22W
Diode Configuration:
Array
Automotive Standard:
No
Maximum Reverse Leakage Current:
100nA
Clamping Voltage VC:
8.5V
Package Type:
SOT-23
Number of Elements per Chip:
4
Product Type:
TVS Diode Array
Maximum Operating Temperature:
85°C
ESD Protection:
Yes
Minimum Breakdown Voltage Vbr:
6V
Length:
3.05mm
Standards/Approvals:
No
Pin Count:
5
Mount Type:
Surface
Series:
SP05
Height:
1.3mm
Minimum Operating Temperature:
-40°C
Test Current It:
10mA
RoHs Compliant
Checking for live stock

This is Quad Uni-Directional TVS Diode Array 0.22W 5-Pin SOT-23 manufactured by Littelfuse. The manufacturer part number is SP0504BAHTG. While is configured as uni-directional. Furthermore, the product is 3 mm wide. The diode features a array configuration. The product complies with automotive standard - no. The product has a maximum 100na of reverse leakage current. The package is a sort of sot-23. It consists of 4 elements per chip. tvs diode array is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 85°c. ESD Protected - yes. Its accurate length is 3.05mm. It contains 5 pins. It has a surface type mount . The product sp05, is a highly preferred choice for users. In addition, the height is 1.3mm. Whereas, the minimum operating temperature of the product is -40°c.

pdf icon
TVS Diode Arrays, SP05 Series - 30pF 30kV Unidirectional TVS Array(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
