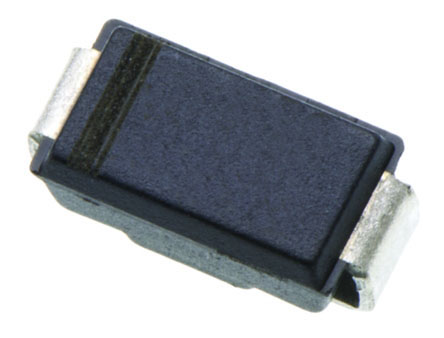

Littelfuse SMAJ12A, Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC

SMAJ12A Littelfuse , Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC
Littelfuse

Product Information

Maximum Peak Pulse Current:
20.1A
Maximum Reverse Stand-off Voltage:
12V
Dimensions:
4.5 x 2.79 x 2.084mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Minimum Breakdown Voltage:
13.3V
Peak Pulse Power Dissipation:
400W
Height:
2.087mm
Width:
2.79mm
Length:
4.5mm
Package Type:
DO-214AC (SMA)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Clamping Voltage:
19.9V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 400W 2-Pin DO-214AC manufactured by Littelfuse. The manufacturer part number is SMAJ12A. It also has 20.1a maximum peak pulse current. While the maximised reverse stand-off voltage includes 12v. The given dimensions of the product include 4.5 x 2.79 x 2.084mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. It harbours a 13.3v of minimum breakdown voltage. It has 400w of peak pulse power dissipation. In addition, the height is 2.087mm. Furthermore, the product is 2.79mm wide. Its accurate length is 4.5mm. The package is a sort of do-214ac (sma). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It is supplied with 19.9v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
SMAJ Series, Transient Voltage Suppression Diodes Surface Mount 400W(Technical Reference)
pdf icon
Transient Voltage Suppression Diodes, Surface Mount, 400W, SMAJ series(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
