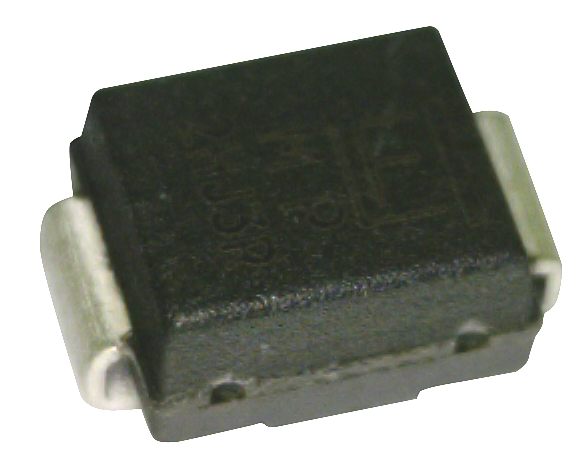

Littelfuse SMBJ36A, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA

SMBJ36A Littelfuse , Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA
Littelfuse

Product Information

Maximum Peak Pulse Current:
10.4A
Maximum Reverse Stand-off Voltage:
36V
Dimensions:
4.57 x 3.94 x 2.237mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Minimum Breakdown Voltage:
40V
Peak Pulse Power Dissipation:
600W
Height:
2.237mm
Width:
3.94mm
Length:
4.57mm
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Clamping Voltage:
58.1V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by Littelfuse. The manufacturer part number is SMBJ36A. It also has 10.4a maximum peak pulse current. While the maximised reverse stand-off voltage includes 36v. The given dimensions of the product include 4.57 x 3.94 x 2.237mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. It harbours a 40v of minimum breakdown voltage. It has 600w of peak pulse power dissipation. In addition, the height is 2.237mm. Furthermore, the product is 3.94mm wide. Its accurate length is 4.57mm. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It is supplied with 58.1v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
SMBJ Series, Transient Voltage Suppression Diodes Surface Mount 600W(Technical Reference)
pdf icon
Transient Voltage Suppression Diodes, Surface Mount, 600W, SMBJ series(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search SMBJ36A on website for other similar products.
We accept all major payment methods for all products including ET13800466. Please check your shopping cart at the time of order.
You can order Littelfuse brand products with SMBJ36A directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Littelfuse SMBJ36A, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA. You can also check on our website or by contacting our customer support team for further order details on Littelfuse SMBJ36A, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13800466 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Littelfuse" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13800466.
Yes. We ship SMBJ36A Internationally to many countries around the world.
