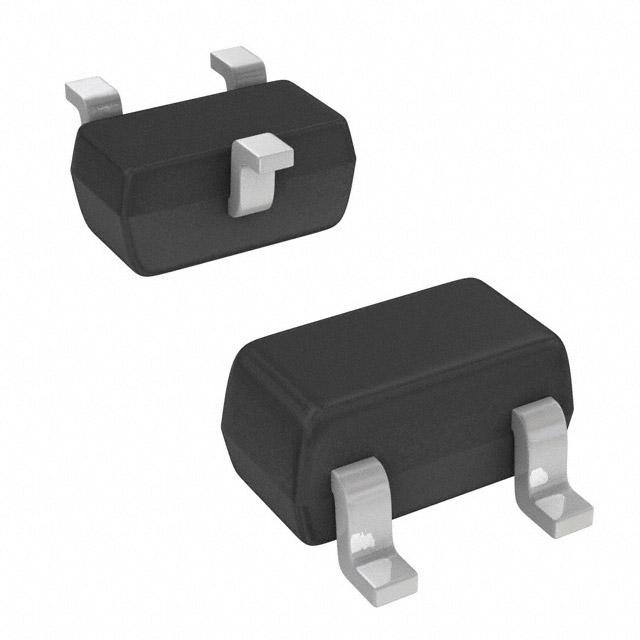

Littelfuse Inc. SP0502BXTG

SP0502BXTG Littelfuse Inc.
SP0502BXTG
Littelfuse Inc.

Product Information

Voltage - Clamping (Max) @ Ipp:
12V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 125°C (TJ)
Package / Case:
SOT-523
Type:
Zener
edacadModel:
SP0502BXTG Models
Voltage - Breakdown (Min):
6V
Applications:
HDMI
edacadModelUrl:
/en/models/5032246
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Unidirectional Channels:
2
Current - Peak Pulse (10/1000µs):
1A (8/20µs)
Voltage - Reverse Standoff (Typ):
5V (Max)
Mounting Type:
Surface Mount
Series:
SP05, SPA®
Supplier Device Package:
SOT-523
Capacitance @ Frequency:
0.25pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
25W
ECCN:
EAR99
Checking for live stock

This is manufactured by Littelfuse Inc.. The manufacturer part number is SP0502BXTG. The maximum clamping voltage is 12v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -40°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in sot-523. It comes in zener configuration. The minimum breakdown voltage is 6v. The product is widely employed in hdmi. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 3 (168 hours). It has 2 unidirectional channels. The peak pulse of the product is given as 1a (8/20µs). Provide with the typical reverse standoff voltage of 5v (max). The product is available in surface mount configuration. The product sp05, spa®, is a highly preferred choice for users. sot-523 is the supplier device package value. It has a nominal capacitance and frequency values of 0.25pf @ 1mhz. Power Line Protection: no. Furthermore, the peak pulse power of the product is 25w. The product is designated with the ear99 code number.

pdf icon
TVS EOL 24/Mar/2022(PCN Obsolescence/ EOL)
pdf icon
RoHS 3 Cert SP0502BXTG(Environmental Information)
