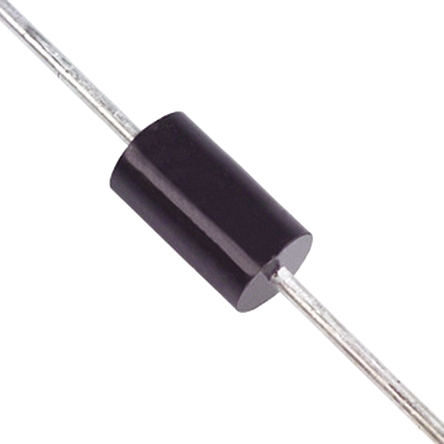

Taiwan Semi 1N5822 R0 Schottky Diode, 40V 3A, 2-Pin DO-201AD

Enrgtech Part No: ET16768719
|
Manufacturer Part No:
1N5822 R0
|
Manufacturer: Taiwan Semiconductor

1N5822-R0 Taiwan Semi 1N5822 R0 Schottky Diode, 40V 3A, 2-Pin DO-201AD

Product Information

Diameter:

5.6mm

Mounting Type:

Through Hole

Diode Technology:

Schottky Barrier

Peak Non-Repetitive Forward Surge Current:

70A

Maximum Forward Voltage Drop:

950mV

Maximum Continuous Forward Current:

Rectifier Type:

Schottky Rectifier

Package Type:

DO-201AD

Number of Elements per Chip:

Diode Type:

Schottky

Diode Configuration:

Single

Pin Count:

1250 - In Stock

Ships in 5-7 business days

Each (On a Reel of 1250)

Quantity

Unit Price (ex VAT)

Price

1250

£ 0.16

£ 200.00

Mfr Part No:

1N5822 R0

Seller:

Taiwan Semiconductor

Origin:

Warranty:

Manufacturer

Data Code:

ET16768719

Order Today!

From: United Kingdom

Est Ship Date: 05 Jun, 2026

Est Fastest Delivery: 09 Jun, 2026

Quantity Quantity

The Taiwan Semiconductor 1N5822 R0 is a high-efficiency Schottky barrier rectifier designed for low-voltage, high-frequency applications. It features a robust DO-201AD axial lead package for easy through-hole mounting. This diode offers a 3A average forward current and 40V repetitive peak reverse voltage. Its metal-to-silicon junction ensures extremely fast switching and minimal power loss. Engineers choose this component for power supplies, chargers, and polarity protection. It delivers reliable performance in demanding circuits.

Why Buy This Product?

This Taiwan Semiconductor 1N5822 R0 Schottky diode enhances circuit efficiency with its extremely low forward voltage drop. It also protects sensitive components from high-frequency transients and reverse polarity.

High surge current capability prevents damage during power spikes.
Fast switching speeds optimise performance in modern power converters.

Functional Highlights & Technical Specifications

Forward Current: 3.0A average rectified current.
Reverse Voltage: 40V repetitive peak reverse voltage.
Forward Voltage: Low 0.525V drop at 3.0A load.
Surge Capacity: 80A non-repetitive peak surge current.
Package Style: Standard DO-201AD axial-lead moulded plastic.
Operating Range: Temperature tolerance from -65°C to +125°C.

1N5820 THRU 1N5822 3.0 AMPS. Schottky Barrier Rectifiers Data Sheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
