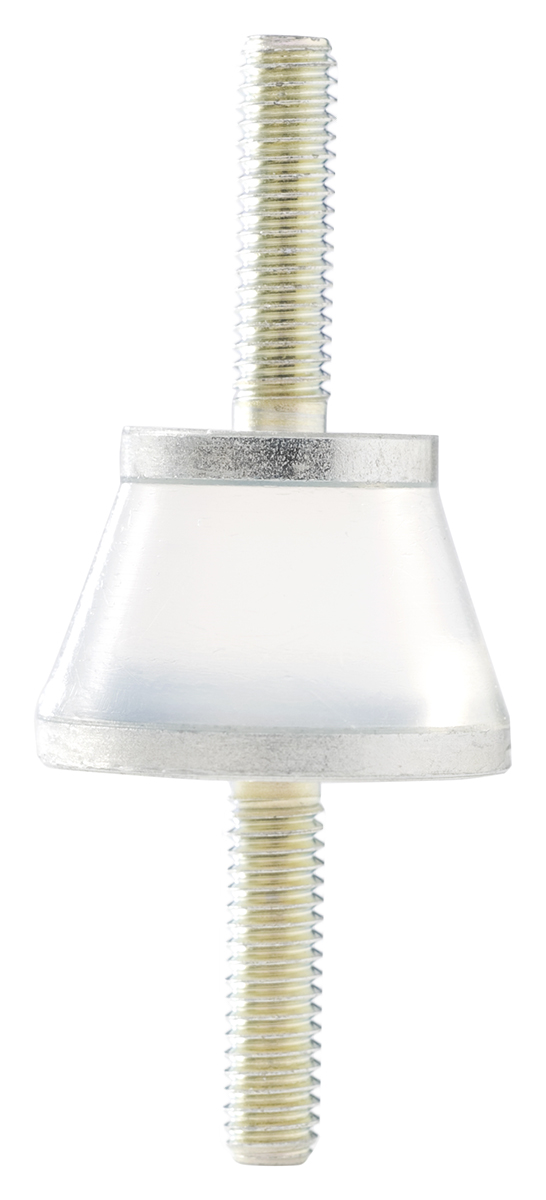

Soft Silicone Gel Mounts Soft silicone gel mounts for vibration isolation, shock absorption and noise reduction. Used for vibration damping on loads from 2 kg up to 100 kg supported at 4 points. Gel anti-vibration mounts are able to dampen to a lower frequency than rubber or neoprene. All SUS versions are stainless steel equivalents. Features and Benefits Fixable by two vertical slotted bolts Strong Bond Between Metal Parts and Silicone High Temperature Resistance -40 to 200°C Excellent Weathering Properties, Ozone Resistant, UV Resistant and Chemically Resistant Not Suitable for Applications Involving Uneven Loads, Angular Loading, Twisting, Tensile or Shearing Loads Application Information Ideal for use on vacuum pumps, precision equipment, measuring applications, on-board computers and other sensitive electronic equipment. Dimensions Type Height h (mm) Top plate dia. (mm) Bottom plate dia. (mm) Stud length (mm) Screw thread A 13 12 18 15 M4 B 18 12 18 15 M4 C 18 20 25 20 M6 MN 3 22 24 24 18 M6 MN 5 22 24 24 18 M6 MN 7 22 24 24 18 M6 MN 10 22 24 24 18 M6 TW 25 28 35 17 M6 BG 7 23 28 28 12 M3 BG 8 23 28 28 12 M6 Comparison table Type Optimum Load (kg/4 legs) Resonance point (Hz) Resonance magnification (dB) Recom. frequency (Hz) A 2.0 to 3.2 16 to 15 12 23 B 1.6 to 2.4 13 to 11 13 to 12 18 C 3.2 to 8.0 14 to 12 13 to 12 20 MN 3 8 to 14 12 to 10 12 17 MN 5 14 to 22 11 to 10 14 to 13 16 MN 7 22 to 34 11 to 10 16 to 15 16 MN 10 34 to 50 11 to 10 20 to 18 16 TW 50 to 100 10 to 8 20 to 19 14 BG 7 3.2 to 6.4 10 to 8 16 to 14 14 BG 8 6 to 16 10 to 8 18 to 16 14 Note A bag contains 1 item Silicone Low Frequency Male/Male Mounts
see also : Ring Shock Mount
see also for this product : Zinc Plated Steel Anti Vibration Feet
For more information please check the datasheets.
