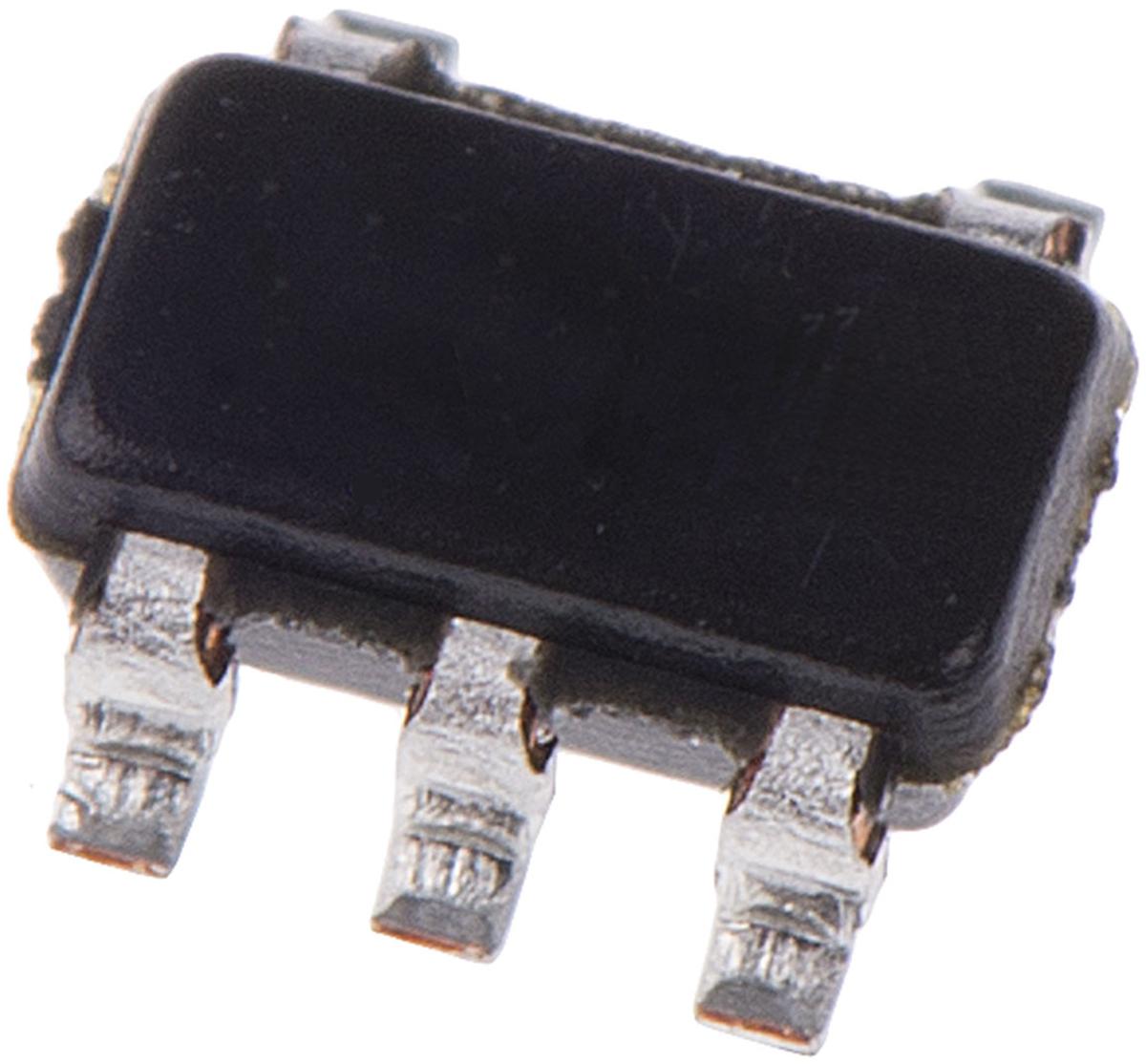

Analog Devices AD8505ARJZ-R7, Low Power, Op Amp, RRIO, 95kHz, 5-Pin SOT-23

AD8505ARJZ-R7 Analog Devices , Low Power, Op Amp, RRIO, 95kHz, 5-Pin SOT-23
AD8505ARJZ-R7
Analog Devices

Product Information

Dimensions:
3 x 1.7 x 1.3mm
Typical Slew Rate:
13mV/µs
Typical Gain Bandwidth Product:
95kHz
Width:
1.7mm
Input Offset Current:
5pA
Power Supply Type:
Dual, Single
Number of Channels per Chip:
1
Package Type:
SOT-23
Typical Voltage Gain:
120 dB
Maximum Operating Temperature:
+125 °C
Rail to Rail:
Rail to Rail Input/Output
Length:
3mm
Pin Count:
5
Typical Input Voltage Noise Density:
45nV/√Hz
Offset Voltage:
3.5mV
Mounting Type:
Surface Mount
Input Voltage Range:
±0.9 → ±2.5 V, 1.8 → 5 V
Height:
1.3mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Low Power
Maximum Input Voltage:
5 V, ±2.5 V
Minimum Input Voltage:
1.8 V, ±0.9 V
RoHs Compliant
Checking for live stock

This is Low Power Op Amp RRIO 95kHz 5-Pin SOT-23 manufactured by Analog Devices. The manufacturer part number is AD8505ARJZ-R7. The given dimensions of the product include 3 x 1.7 x 1.3mm. Furthermore, it has a typical 13mv/µs of slew rate. Features 95khz typical gain bandwidth. Furthermore, the product is 1.7mm wide. In addition, it exhibits an input 5pa offset current . It is a type of dual, single power supply. It comprises 1 channels per chip. The package is a sort of sot-23. Furthermore, its typical voltage gain includes 120 db. It has a maximum operating temperature of +125 °c. Rail to rail options include rail to rail input/output. Its accurate length is 3mm. It contains 5 pins. Featuring a 45nv/√hz of typical input voltage noise density. Its offset voltage is approximately 3.5mv . The product is available in surface mount configuration. It has ±0.9 → ±2.5 v, 1.8 → 5 v of input voltage range. In addition, the height is 1.3mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a low power amplifier. 5 v, ±2.5 v is the maximum voltage of the bespoke product. The product has 1.8 v, ±0.9 v of minimum input voltage.

pdf icon
AD8505/AD8506/AD8508, 20uA Maximum, Rail-to-Rail I/O, Zero Input Crossover Distortion Amplifiers(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
AD8505 SPICE Macro Model(Technical Reference)
