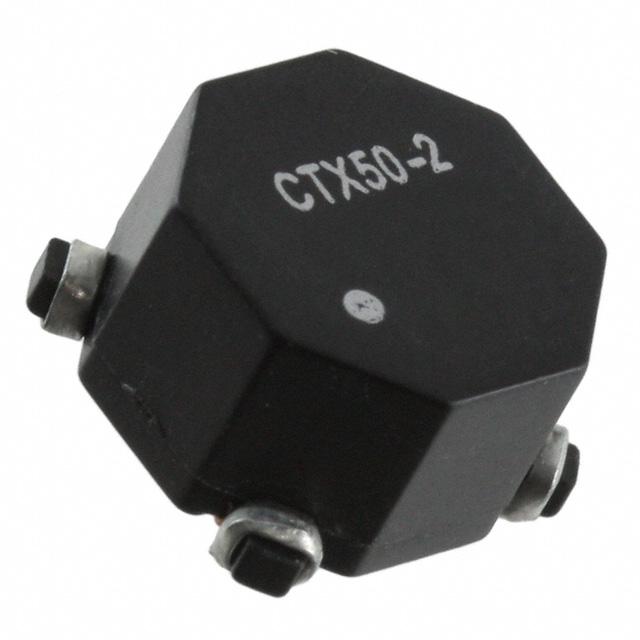

Eaton - Electronics Division CTX50-2-R

CTX50-2-R Eaton - Electronics Division
CTX50-2-R
Eaton - Electronics Division

Product Information

Ratings:
-
HTSUS:
8504.50.4000
RoHS Status:
ROHS3 Compliant
Number of Coils:
2
Operating Temperature:
-40°C ~ 85°C
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Package / Case:
Nonstandard
Tolerance:
±20%
DC Resistance (DCR) - Series:
839mOhm Max
Shielding:
Unshielded
edacadModel:
CTX50-2-R Models
edacadModelUrl:
/en/models/614797
Package:
Tape & Reel (TR)
Inductance - Connected In Series:
204.73 µH
Size / Dimension:
0.450" L x 0.450" W (11.43mm x 11.43mm)
standardLeadTime:
13 Weeks
Current Rating - Parallel:
920 mA
Mounting Type:
Surface Mount
Series:
OCTA-PAC®
DC Resistance (DCR) - Parallel:
210mOhm Max
Height:
0.235" (5.97mm)
Inductance - Connected In Parallel:
51.18 µH
Current Rating - Series:
460 mA
ECCN:
EAR99
Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is CTX50-2-R. It is assigned with possible HTSUS value of 8504.50.4000. The product is rohs3 compliant. It consists of 2 coils. The product has -40°c ~ 85°c operating temperature range. Its typical moisture sensitivity level is 1 (unlimited). Moreover, the product comes in nonstandard. It features ±20% of tolerance value. Features 839mohm max DCR. Furthermore, the product is shielded with unshielded. It is shipped in tape & reel (tr) package . While the series connected inductance is 204.73 µh. The product's diameters include 0.450" l x 0.450" w (11.43mm x 11.43mm). It has a long 13 weeks standard lead time. It features 920 ma of parallel current rating. The product is available in surface mount configuration. The product octa-pac®, is a highly preferred choice for users. It has 210mohm max parallel DC resistance. In addition, the height is 0.235" (5.97mm). It has [Inductance - Connected in Parallel] inductance at parallel connection. The series current rated with 460 ma. The product is designated with the ear99 code number.

pdf icon
Multiple Devices 31/Aug/2013(PCN Assembly/Origin)
pdf icon
CTX Series ECONO-PAC, OCTA-PAC/PLUS(Datasheets)
pdf icon
Octa-Pac 27/Sep/2018(PCN Packaging)
pdf icon
Shipping Box and Labels 05/Jan/2018(PCN Packaging)
