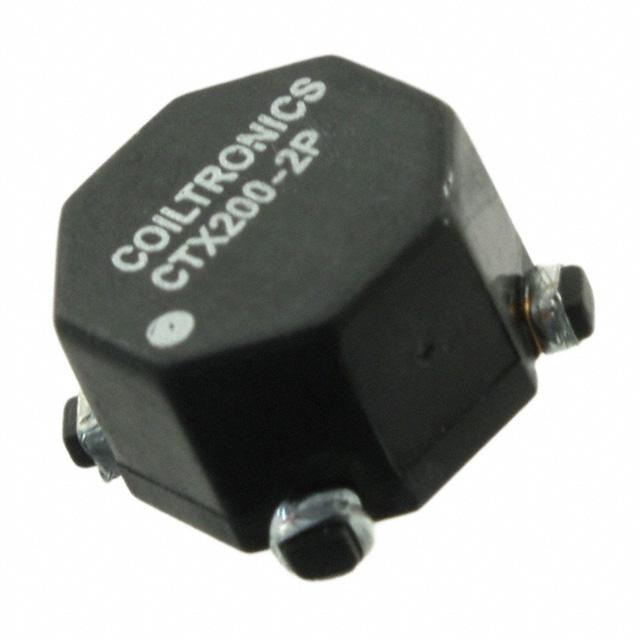

Eaton - Electronics Division CTX200-2P-R

CTX200-2P-R Eaton - Electronics Division
CTX200-2P-R
Eaton - Electronics Division

Product Information

Ratings:
-
HTSUS:
8504.50.4000
RoHS Status:
ROHS3 Compliant
Number of Coils:
2
Operating Temperature:
-40°C ~ 85°C
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Package / Case:
Nonstandard
Tolerance:
±20%
DC Resistance (DCR) - Series:
3.804Ohm Max
Shielding:
Unshielded
REACH Status:
REACH Unaffected
edacadModel:
CTX200-2P-R Models
edacadModelUrl:
/en/models/667344
Package:
Tape & Reel (TR)
Inductance - Connected In Series:
806.34 µH
Size / Dimension:
0.450" L x 0.450" W (11.43mm x 11.43mm)
standardLeadTime:
11 Weeks
Current Rating - Parallel:
460 mA
Mounting Type:
Surface Mount
Series:
Econo-Pac™
DC Resistance (DCR) - Parallel:
951mOhm Max
Height:
0.235" (5.97mm)
Inductance - Connected In Parallel:
201.59 µH
Current Rating - Series:
230 mA
ECCN:
EAR99
Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is CTX200-2P-R. It is assigned with possible HTSUS value of 8504.50.4000. The product is rohs3 compliant. It consists of 2 coils. The product has -40°c ~ 85°c operating temperature range. Its typical moisture sensitivity level is 1 (unlimited). Moreover, the product comes in nonstandard. It features ±20% of tolerance value. Features 3.804ohm max DCR. Furthermore, the product is shielded with unshielded. In addition, it is reach unaffected. It is shipped in tape & reel (tr) package . While the series connected inductance is 806.34 µh. The product's diameters include 0.450" l x 0.450" w (11.43mm x 11.43mm). It has a long 11 weeks standard lead time. It features 460 ma of parallel current rating. The product is available in surface mount configuration. The product econo-pac™, is a highly preferred choice for users. It has 951mohm max parallel DC resistance. In addition, the height is 0.235" (5.97mm). It has [Inductance - Connected in Parallel] inductance at parallel connection. The series current rated with 230 ma. The product is designated with the ear99 code number.

pdf icon
Multiple Devices 31/Aug/2013(PCN Assembly/Origin)
pdf icon
CTX Series ECONO-PAC, OCTA-PAC/PLUS(Datasheets)
pdf icon
Shipping Box and Labels 05/Jan/2018(PCN Packaging)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search CTX200-2P-R on website for other similar products.
We accept all major payment methods for all products including ET17500128. Please check your shopping cart at the time of order.
You can order Eaton - Electronics Division brand products with CTX200-2P-R directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Arrays, Signal Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Eaton - Electronics Division CTX200-2P-R. You can also check on our website or by contacting our customer support team for further order details on Eaton - Electronics Division CTX200-2P-R.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17500128 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Eaton - Electronics Division" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17500128.
Yes. We ship CTX200-2P-R Internationally to many countries around the world.
