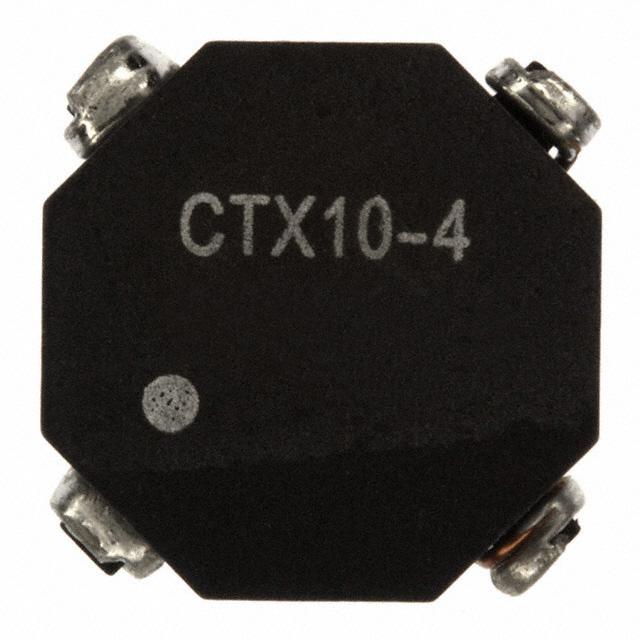

Eaton - Electronics Division CTX10-4-R

CTX10-4-R Eaton - Electronics Division
CTX10-4-R
Eaton - Electronics Division

Product Information

Ratings:
-
HTSUS:
8504.50.4000
RoHS Status:
ROHS3 Compliant
Number of Coils:
2
Operating Temperature:
-40°C ~ 85°C
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Package / Case:
Nonstandard
Tolerance:
±20%
DC Resistance (DCR) - Series:
78mOhm Max
Shielding:
Unshielded
REACH Status:
REACH Unaffected
edacadModel:
CTX10-4-R Models
edacadModelUrl:
/en/models/614783
Package:
Tape & Reel (TR)
Inductance - Connected In Series:
38.42 µH
Size / Dimension:
0.550" L x 0.550" W (13.97mm x 13.97mm)
standardLeadTime:
13 Weeks
Current Rating - Parallel:
3.4 A
Mounting Type:
Surface Mount
Series:
OCTA-PAC®
DC Resistance (DCR) - Parallel:
19mOhm Max
Height:
0.250" (6.35mm)
Inductance - Connected In Parallel:
9.6 µH
Current Rating - Series:
1.7 A
ECCN:
EAR99
Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is CTX10-4-R. It is assigned with possible HTSUS value of 8504.50.4000. The product is rohs3 compliant. It consists of 2 coils. The product has -40°c ~ 85°c operating temperature range. Its typical moisture sensitivity level is 1 (unlimited). Moreover, the product comes in nonstandard. It features ±20% of tolerance value. Features 78mohm max DCR. Furthermore, the product is shielded with unshielded. In addition, it is reach unaffected. It is shipped in tape & reel (tr) package . While the series connected inductance is 38.42 µh. The product's diameters include 0.550" l x 0.550" w (13.97mm x 13.97mm). It has a long 13 weeks standard lead time. It features 3.4 a of parallel current rating. The product is available in surface mount configuration. The product octa-pac®, is a highly preferred choice for users. It has 19mohm max parallel DC resistance. In addition, the height is 0.250" (6.35mm). It has [Inductance - Connected in Parallel] inductance at parallel connection. The series current rated with 1.7 a. The product is designated with the ear99 code number.

pdf icon
Coiltronics Magnetics Facility 31/Aug/2013(PCN Assembly/Origin)
pdf icon
CTX Series ECONO-PAC, OCTA-PAC/PLUS(Datasheets)
pdf icon
Octa-Pac 27/Sep/2018(PCN Packaging)
pdf icon
Shipping Box and Labels 05/Jan/2018(PCN Packaging)
