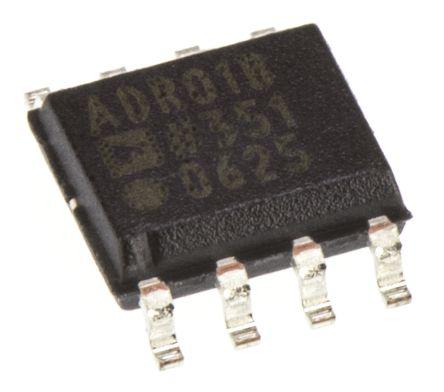

Analog Devices ADR01BRZ, Fixed Series Voltage Reference 10V, ±0.05 % 8-Pin, SOIC

ADR01BRZ Analog Devices , Fixed Series Voltage Reference 10V, ±0.05 % 8-Pin, SOIC
ADR01BRZ
Analog Devices

Product Information

Load Regulation:
70 ppm/mA
Dimensions:
5 x 4 x 1.5mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+125 °C
Line Regulation:
30 ppm/V
Maximum Input Voltage:
36 V
Height:
1.5mm
Width:
4mm
Length:
5mm
Initial Accuracy:
±0.05 %
Package Type:
SOIC
Maximum Output Voltage:
10.005 V
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
9.995 V
Nominal Voltage:
10V
Reference Type:
Fixed
Maximum Output Current:
10mA
Pin Count:
8
Topology:
Series
RoHs Compliant
Checking for live stock

This is Fixed Series Voltage Reference 10V ±0.05 % 8-Pin SOIC manufactured by Analog Devices. The manufacturer part number is ADR01BRZ. Load Regulation - 70 ppm/ma. The given dimensions of the product include 5 x 4 x 1.5mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. Has a line regulation of 30 ppm/v. 36 v is the maximum voltage of the bespoke product. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 5mm. Its initial accuracy is approximately ±0.05 % . The package is a sort of soic. Its output voltage (maximum) includes 10.005 v. Whereas, the minimum operating temperature of the product is -40 °c. The product features 9.995 v minimum output voltage. The nominal voltage of the product is 10v. The product has a reference of fixed type. Featuring 10ma of maximum output current. It contains 8 pins. Topology includes series.
