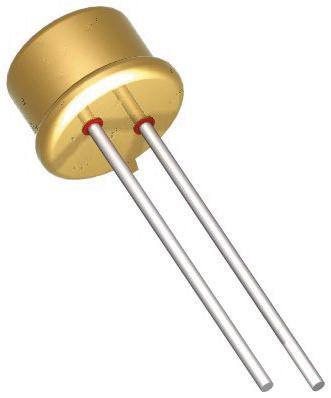

Analog Devices AD589TH, Fixed Shunt Voltage Reference 1.235V, ±1.2 % 2-Pin, TO-51

AD589TH Analog Devices , Fixed Shunt Voltage Reference 1.235V, ±1.2 % 2-Pin, TO-51
Analog Devices

Product Information

Load Regulation:
5 mV
Dimensions:
7 x 7 x 1mm
Mounting Type:
Through Hole
Maximum Operating Temperature:
+125 °C
Height:
1mm
Width:
7mm
Length:
7mm
Initial Accuracy:
±1.2 %
Package Type:
TO-51
Maximum Output Voltage:
1.25 V
Minimum Operating Temperature:
-55 °C
Minimum Output Voltage:
1.2 V
Nominal Voltage:
1.235V
Reference Type:
Fixed
Maximum Output Current:
5mA
Pin Count:
2
Topology:
Shunt
RoHs Compliant
Checking for live stock

This is Fixed Shunt Voltage Reference 1.235V ±1.2 % 2-Pin TO-51 manufactured by Analog Devices. The manufacturer part number is AD589TH. Load Regulation - 5 mv. The given dimensions of the product include 7 x 7 x 1mm. The product is available in through hole configuration. It has a maximum operating temperature of +125 °c. In addition, the height is 1mm. Furthermore, the product is 7mm wide. Its accurate length is 7mm. Its initial accuracy is approximately ±1.2 % . The package is a sort of to-51. Its output voltage (maximum) includes 1.25 v. Whereas, the minimum operating temperature of the product is -55 °c. The product features 1.2 v minimum output voltage. The nominal voltage of the product is 1.235v. The product has a reference of fixed type. Featuring 5ma of maximum output current. It contains 2 pins. Topology includes shunt.

pdf icon
AD589 2-Terminal IC 1.2 V Reference Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD589TH on website for other similar products.
We accept all major payment methods for all products including ET14003440. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD589TH directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Voltage References category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD589TH, Fixed Shunt Voltage Reference 1.235V, ±1.2 % 2-Pin, TO-51. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD589TH, Fixed Shunt Voltage Reference 1.235V, ±1.2 % 2-Pin, TO-51.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14003440 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14003440.
Yes. We ship AD589TH Internationally to many countries around the world.
