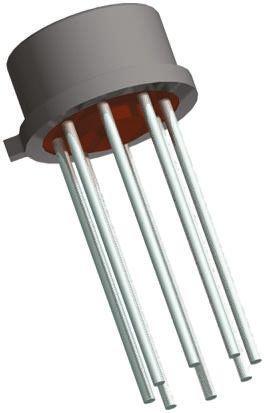

Analog Devices AD584TH, Adjustable Series Voltage Reference 2.5 V, 5 V, 7.5 V, 10 V, ±0.3 % 8-Pin, TO-99

AD584TH Analog Devices , Adjustable Series Voltage Reference 2.5 V, 5 V, 7.5 V, 10 V, ±0.3 % 8-Pin, TO-99
Analog Devices

Product Information

Load Regulation:
50 ppm/mA
Dimensions:
8.5 (Dia.) x 4.7mm
Mounting Type:
Through Hole
Maximum Operating Temperature:
+125 °C
Line Regulation:
0.005 %/V
Maximum Input Voltage:
15 V
Height:
4.7mm
Width:
8.5mm
Initial Accuracy:
±0.3 %
Package Type:
TO-99
Maximum Output Voltage:
10 V
Minimum Operating Temperature:
-55 °C
Nominal Voltage:
2.5 V, 5 V, 7.5 V, 10V
Reference Type:
Programmable
Maximum Output Current:
10mA
Pin Count:
8
Topology:
Series
RoHs Compliant
Checking for live stock

This is Adjustable Series Voltage Reference 2.5 V 5 V 7.5 V 10 V ±0.3 % 8-Pin TO-99 manufactured by Analog Devices. The manufacturer part number is AD584TH. Load Regulation - 50 ppm/ma. The given dimensions of the product include 8.5 (dia.) x 4.7mm. The product is available in through hole configuration. It has a maximum operating temperature of +125 °c. Has a line regulation of 0.005 %/v. 15 v is the maximum voltage of the bespoke product. In addition, the height is 4.7mm. Furthermore, the product is 8.5mm wide. Its initial accuracy is approximately ±0.3 % . The package is a sort of to-99. Its output voltage (maximum) includes 10 v. Whereas, the minimum operating temperature of the product is -55 °c. The nominal voltage of the product is 2.5 v, 5 v, 7.5 v, 10v. The product has a reference of programmable type. Featuring 10ma of maximum output current. It contains 8 pins. Topology includes series.

pdf icon
AD584, Pin Programmable Precision Voltage Reference(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD584TH on website for other similar products.
We accept all major payment methods for all products including ET13857086. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD584TH directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Voltage References category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD584TH, Adjustable Series Voltage Reference 2.5 V, 5 V, 7.5 V, 10 V, ±0.3 % 8-Pin, TO-99. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD584TH, Adjustable Series Voltage Reference 2.5 V, 5 V, 7.5 V, 10 V, ±0.3 % 8-Pin, TO-99.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13857086 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13857086.
Yes. We ship AD584TH Internationally to many countries around the world.
