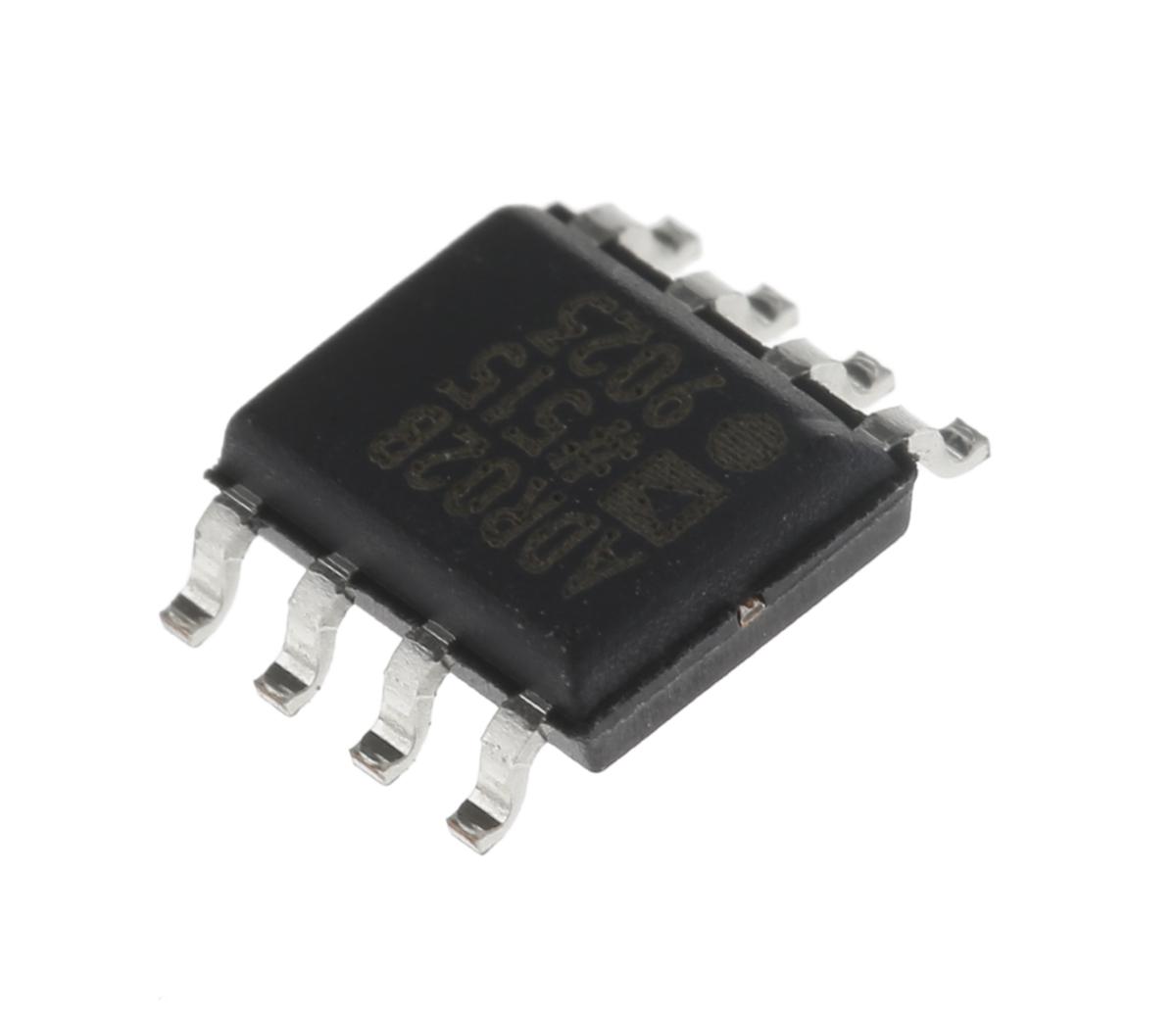

Analog Devices ADR02BRZ, Fixed Series Voltage Reference 5V, ±0.06 %, SOIC 8-Pin

ADR02BRZ Analog Devices , Fixed Series Voltage Reference 5V, ±0.06 %, SOIC 8-Pin
ADR02BRZ
Analog Devices

Product Information

Load Regulation:
70 ppm/mA
Dimensions:
5 x 4 x 1.5mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+125 °C
Line Regulation:
30 ppm/V
Maximum Input Voltage:
36 V
Height:
1.5mm
Width:
4mm
Length:
5mm
Initial Accuracy:
±0.06 %
Package Type:
SOIC
Maximum Output Voltage:
5.003 V
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
4.997 V
Nominal Voltage:
5V
Reference Type:
Fixed
Maximum Output Current:
10mA
Pin Count:
8
Topology:
Series
RoHs Compliant
Checking for live stock

This is Fixed Series Voltage Reference 5V ±0.06 % SOIC 8-Pin manufactured by Analog Devices. The manufacturer part number is ADR02BRZ. Load Regulation - 70 ppm/ma. The given dimensions of the product include 5 x 4 x 1.5mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. Has a line regulation of 30 ppm/v. 36 v is the maximum voltage of the bespoke product. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 5mm. Its initial accuracy is approximately ±0.06 % . The package is a sort of soic. Its output voltage (maximum) includes 5.003 v. Whereas, the minimum operating temperature of the product is -40 °c. The product features 4.997 v minimum output voltage. The nominal voltage of the product is 5v. The product has a reference of fixed type. Featuring 10ma of maximum output current. It contains 8 pins. Topology includes series.
