Name: HMC509LP5E, Analog Devices
Brand: Analog Devices
SKU: ET14003989
Price: 35.17 GBP
Availability: PreOrder

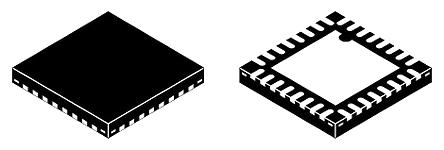

HMC509LP5E Analog Devices Hittite , VCO, 3.9 → 4.4 (Output 2) GHz, 7.8 → 8.8 (Output 1) GHz, 32-Pin QFN

(0)

Product Information

Dimensions:

5.1 x 5.1 x 1mm

Maximum Operating Supply Voltage:

13V dc

Series:

Hittite

Minimum Operating Supply Voltage:

2V dc

Oscillator Type:

VCO

Height:

1mm

Package Type:

QFN-32

Output Frequency:

7.80 → 8.80GHz

Minimum Operating Temperature:

-40°C

Maximum Operating Temperature:

85°C

Pin Count:

Checking for live stock

This is Hittite VCO 3.9 → 4.4 (Output 2) GHz 7.8 → 8.8 (Output 1) GHz 32-Pin QFN manufactured by Analog Devices. The manufacturer part number is HMC509LP5E. The given dimensions of the product include 5.1 x 5.1 x 1mm. It has 13v dc maximum operating supply voltage. The product hittite, is a highly preferred choice for users. While its minimum operating supply voltage is 2v dc. The product is a vco type of oscillator. In addition, the height is 1mm. The package is a sort of qfn-32. This product has an output frequency range of 7.80 → 8.80ghz. Whereas, the minimum operating temperature of the product is -40°c. It has a maximum operating temperature of 85°c. It contains 32 pins.

ESD Control Selection Guide V1(Technical Reference)

HMC509LP5 / 509LP5E, MMIC VCO w/ HALF FREQUENCY OUTPUT 7.8 - 8.8 GHz(Technical Reference)
