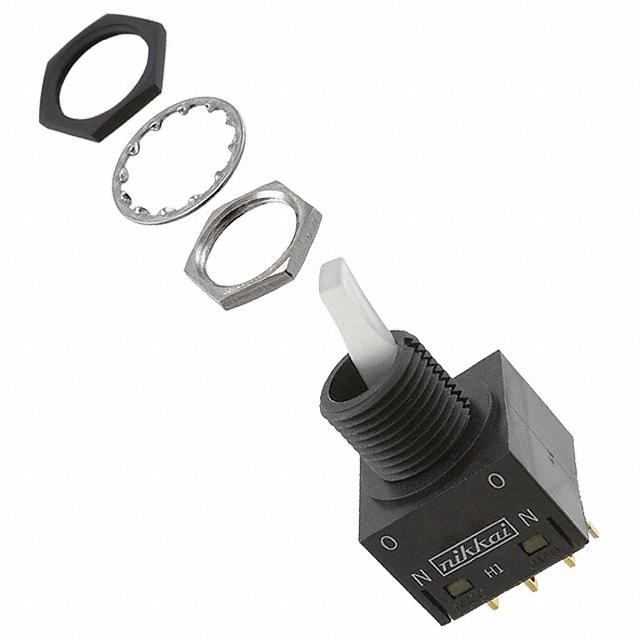

NKK Switches TL22SFAG015F

TL22SFAG015F NKK Switches
NKK Switches

Product Information

HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
50,000 Cycles
Termination Style:
Solder Lug
Voltage Rating - DC:
28 V
Operating Temperature:
-10°C ~ 55°C
Panel Cutout Dimensions:
Circular - 12.50mm Dia
Actuator Length:
11.00mm
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
edacadModel:
TL22SFAG015F Models
edacadModelUrl:
/en/models/1053003
Illumination Type, Color:
LED, Green
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
DPDT
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
IP65 - Dust Tight, Water Resistant
Features:
Epoxy Sealed Terminals
Mounting Type:
Panel Mount
Series:
TL
Packaging:
Tray
Bushing Thread:
M12 x 1
Actuator Type:
Flatted
Illumination:
Illuminated
Illumination Voltage (Nominal):
2.3 VDC
Actuator Material:
Polycarbonate (PC)
Base Product Number:
TL22SF
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is TL22SFAG015F. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 50,000 cycles. Moreover, it has solder lug terminal style. 28 v of DC voltage rating. The product has -10°c ~ 55°c operating temperature range. It also has a circular - 12.50mm dia dimensional features. The actuator is a 11.00mm long. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. It is supplied with led, green illumination. It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral dpdt circuit. Additionally, the product's output is 0.4va (ac/dc). It is IP rated with ip65 - dust tight, water resistant. The splendid features of the product include epoxy sealed terminals. The product is available in panel mount configuration. The product tl, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. The product has bushing thread of m12 x 1. The product carries flatted actuator. Is this product illuminated? illuminated. The nominal illumination voltage of the product is 2.3 vdc. The actuator is designed from sturdy polycarbonate (pc) material. Moreover, it corresponds to tl22sf, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
RoHS Cert - Switches & Pushbuttons(Environmental Information)
pdf icon
NKK Switches PFOS & PFOA Free Cert(Environmental Information)
pdf icon
NKK Switches ODC Cert(Environmental Information)
pdf icon
Mfg Location chg 17/DEC/2021(PCN Assembly/Origin)
pdf icon
Multiple Devices O-ring 30/Jun/2011(PCN Design/Specification)
pdf icon
Obsolete 09/MAY/2023(PCN Obsolescence/ EOL)
pdf icon
TL Series Toggle Switch ILLUM(Datasheets)
