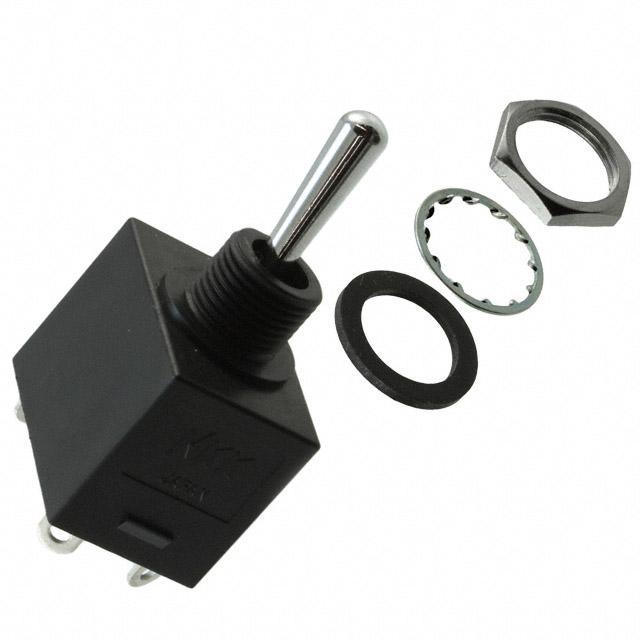

NKK Switches WT23S

WT23S NKK Switches
WT23S
NKK Switches

Product Information

Contact Resistance:
10mΩ
Actuator Length:
17.5mm
Illuminated:
No
Mounting Type:
Panel Mount
Voltage Rating:
250V ac
Contact Current Rating:
10 A
Panel Cut Out Diameter:
12.5mm
IP Rating:
IP60, IP67
Contact Configuration:
DPDT
Minimum Operating Temperature:
-30°C
Operating Temperature Range:
-30 → +70°C
Switch Operation:
On-Off-On
Maximum Operating Temperature:
+70°C
Terminal Type:
Solder
Contact Material:
Silver Alloy Plus Copper (Movable & Stationary)
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
15,000 Cycles
Termination Style:
Solder Lug
Voltage Rating - DC:
30 V
Operating Temperature:
-30°C ~ 70°C
Panel Cutout Dimensions:
Circular - 12.50mm Dia
Actuator Length:
17.50mm
title:
WT23S
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
edacadModel:
WT23S Models
edacadModelUrl:
/en/models/1007039
Illumination Type, Color:
-
Switch Function:
On-Off-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
DPDT
standardLeadTime:
18 Weeks
Current Rating (Amps):
10A (AC/DC)
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Epoxy Sealed Terminals
Mounting Type:
Panel Mount
Series:
WT
Packaging:
Bulk
Bushing Thread:
M12 x 1
Actuator Type:
Standard Round
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Brass, Chrome Plated
Base Product Number:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is WT23S. It features a 10mω contact resistance. The actuator is a 17.5mm long. Illumination Option no. The product is available in panel mount configuration. Moreover, the product has a nominal 250v ac voltage rating. The rated contact current is 10 a. The panel has a 12.5mm cut-out diameter. It is IP rated with ip60, ip67. The contact is equipped with dpdt configuration. Whereas, the minimum operating temperature of the product is -30°c. The product has -30 → +70°c of operating temperature range. It provides on-off-on switch operation. It has a maximum operating temperature of +70°c. The terminal is a solder type. The product is made from sturdy silver alloy plus copper (movable & stationary) materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 15,000 cycles. Moreover, it has solder lug terminal style. 30 v of DC voltage rating. The product has -30°c ~ 70°c operating temperature range. It also has a circular - 12.50mm dia dimensional features. The actuator is a 17.50mm long. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. It is designed as a on-off-on switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral dpdt circuit. It has a long 18 weeks standard lead time. Additionally, the product's output is 10a (ac/dc). It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include epoxy sealed terminals. The product wt, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product has bushing thread of m12 x 1. The product carries standard round actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy brass, chrome plated material. The product is designated with the ear99 code number.
