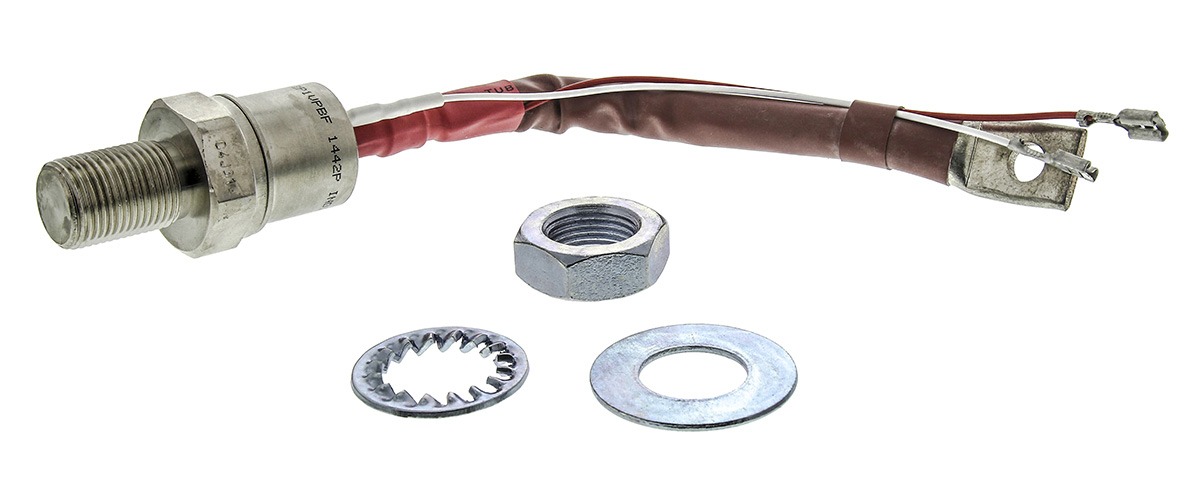

Vishay, VS-ST230S12P1VPBF, Thyristor, 1200V 230A, 150mA 3-Pin, TO-93

VS-ST230S12P1VPBF Vishay, , Thyristor, 1200V 230A, 150mA 3-Pin, TO-93
VS-ST230S12P1VPBF
Vishay

Product Information

Repetitive Peak Forward Blocking Voltage:
1200V
Repetitive Peak Reverse Voltage:
1200V
Peak On-State Voltage:
1.55V
Dimensions:
35 x 30.33 x 49.5mm
Mounting Type:
Thread Mount
Surge Current Rating:
5970A
Rated Average On-State Current:
230A
Repetitive Peak Off-State Current:
30mA
Package Type:
TO-93
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
600mA
Maximum Gate Trigger Current:
150mA
Thyristor Type:
SCR
Maximum Operating Temperature:
+125 °C
Pin Count:
3
Maximum Gate Trigger Voltage:
3V
RoHs Compliant
Checking for live stock

This is Thyristor 1200V 230A 150mA 3-Pin TO-93 manufactured by Vishay. The manufacturer part number is VS-ST230S12P1VPBF. Moreover, it has a repetitive peak forward blocking voltage about 1200v . It has about 1200v repetitive reverse voltage . It has a peak on-state voltage about 1.55v . The given dimensions of the product include 35 x 30.33 x 49.5mm. The product is available in thread mount configuration. It has about 5970a surge current rating . Moreover, it has about 230a rated average on-state current . Its repetitive peak off-state current is approximately 30ma . The package is a sort of to-93. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 600ma holding current . In addition, the product has a maximum 150ma gate trigger current . In addition, the product has a/an scr type thyristor . It has a maximum operating temperature of +125 °c. It contains 3 pins. Moreover, it has a maximum 3v gate trigger voltage .
