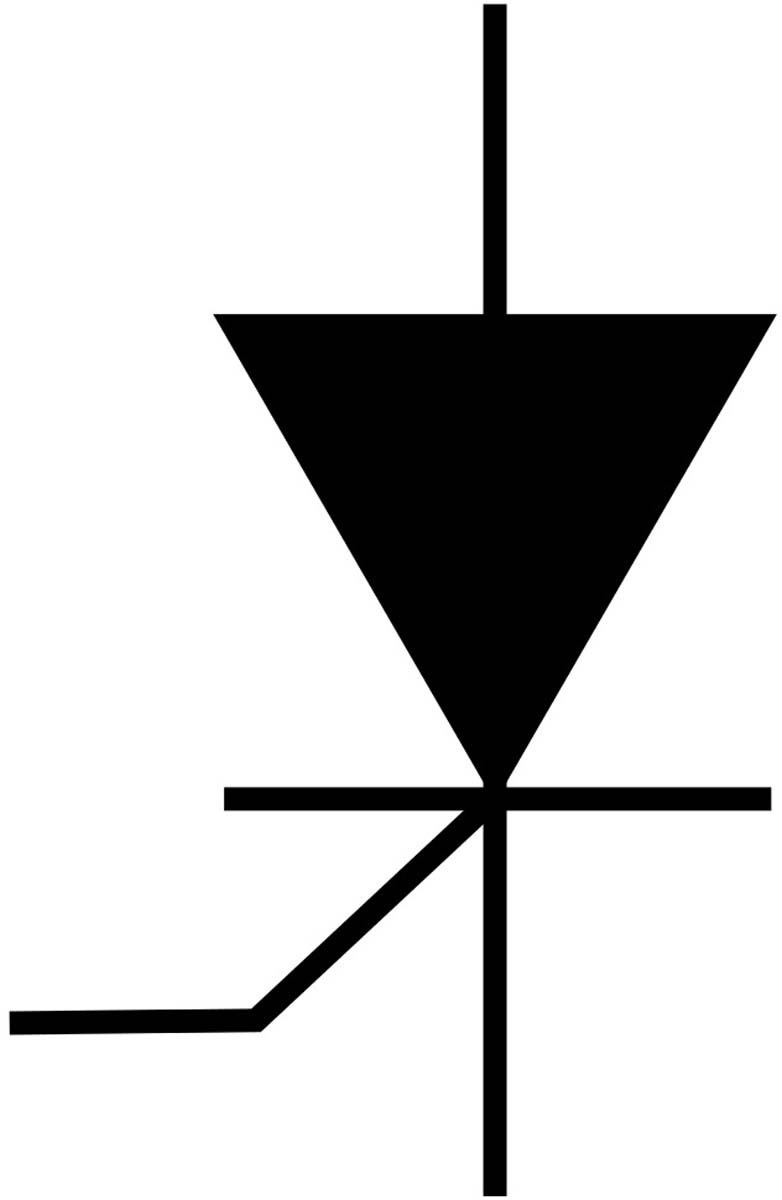

Vishay, VS-2N5206, Thyristor, 1000V 22A, 80mA 2-Pin, TO-208AA

VS-2N5206 Vishay, , Thyristor, 1000V 22A, 80mA 2-Pin, TO-208AA
VS-2N5206
Vishay

Product Information

Diameter:
15.5mm
Peak On-State Voltage:
2.3V
Dimensions:
15.5 x 14.3 x 41.7mm
Mounting Type:
Thread Mount
Repetitive Peak Reverse Voltage:
1000V
Surge Current Rating:
340A
Rated Average On-State Current:
22A
Package Type:
TO-208AA
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
200mA
Maximum Gate Trigger Current:
80mA
Thyristor Type:
SCR
Maximum Operating Temperature:
+125 °C
Pin Count:
2
Maximum Gate Trigger Voltage:
3V
RoHs Compliant
Checking for live stock

This is Thyristor 1000V 22A 80mA 2-Pin TO-208AA manufactured by Vishay. The manufacturer part number is VS-2N5206. Its diameter is 15.5mm. It has a peak on-state voltage about 2.3v . The given dimensions of the product include 15.5 x 14.3 x 41.7mm. The product is available in thread mount configuration. It has about 1000v repetitive reverse voltage . It has about 340a surge current rating . Moreover, it has about 22a rated average on-state current . The package is a sort of to-208aa. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 200ma holding current . In addition, the product has a maximum 80ma gate trigger current . In addition, the product has a/an scr type thyristor . It has a maximum operating temperature of +125 °c. It contains 2 pins. Moreover, it has a maximum 3v gate trigger voltage .

pdf icon
2N681 & 2N5204 Series, 25A and 35A RMS SCRs (Thyristors)(Technical Reference)
