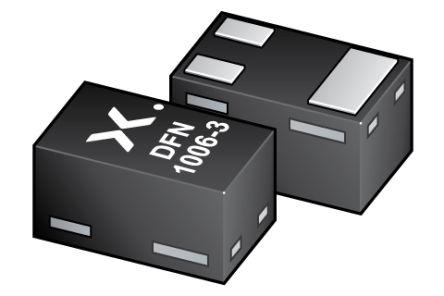

Nexperia BAV70M,315 Dual General Purpose Diode, Dual, 150mA 100V, 3-Pin DFN1006, SOT-883

BAV70M-315 Nexperia BAV70M,315 Dual General Purpose Diode, Dual, 150mA 100V, 3-Pin DFN1006, SOT-883
Nexperia

Product Information

Automotive Standard:
AEC-Q101
Maximum Diode Capacitance:
1.5pF
Dimensions:
1.02 x 0.62 x 0.5mm
Mounting Type:
Surface Mount
Power Dissipation:
250mW
Maximum Forward Current:
150mA
Height:
0.5mm
Width:
0.62mm
Length:
1.02mm
Package Type:
DFN1006, SOT-883
Number of Elements per Chip:
2
Minimum Operating Temperature:
-65 °C
Maximum Reverse Voltage:
100V
Maximum Operating Temperature:
+150 °C
Diode Configuration:
Dual
Pin Count:
3
RoHs Compliant
Checking for live stock

This is Dual General Purpose Diode Dual 150mA 100V 3-Pin DFN1006 SOT-883 manufactured by Nexperia. The manufacturer part number is BAV70M,315. The product complies with automotive standard - aec-q101. It has a maximum 1.5pf diode capacitance . The given dimensions of the product include 1.02 x 0.62 x 0.5mm. The product is available in surface mount configuration. It has about 250mw power dissipation . Moreover, the product has a maximum 150ma forward current . In addition, the height is 0.5mm. Furthermore, the product is 0.62mm wide. Its accurate length is 1.02mm. The package is a sort of dfn1006, sot-883. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. Moreover, the product has a maximum 100v reverse voltage . It has a maximum operating temperature of +150 °c. The diode features a dual configuration. It contains 3 pins.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search BAV70M,315 on website for other similar products.
We accept all major payment methods for all products including ET16799590. Please check your shopping cart at the time of order.
You can order Nexperia brand products with BAV70M,315 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Switching Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia BAV70M,315 Dual General Purpose Diode, Dual, 150mA 100V, 3-Pin DFN1006, SOT-883. You can also check on our website or by contacting our customer support team for further order details on Nexperia BAV70M,315 Dual General Purpose Diode, Dual, 150mA 100V, 3-Pin DFN1006, SOT-883.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16799590 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16799590.
Yes. We ship BAV70M,315 Internationally to many countries around the world.
