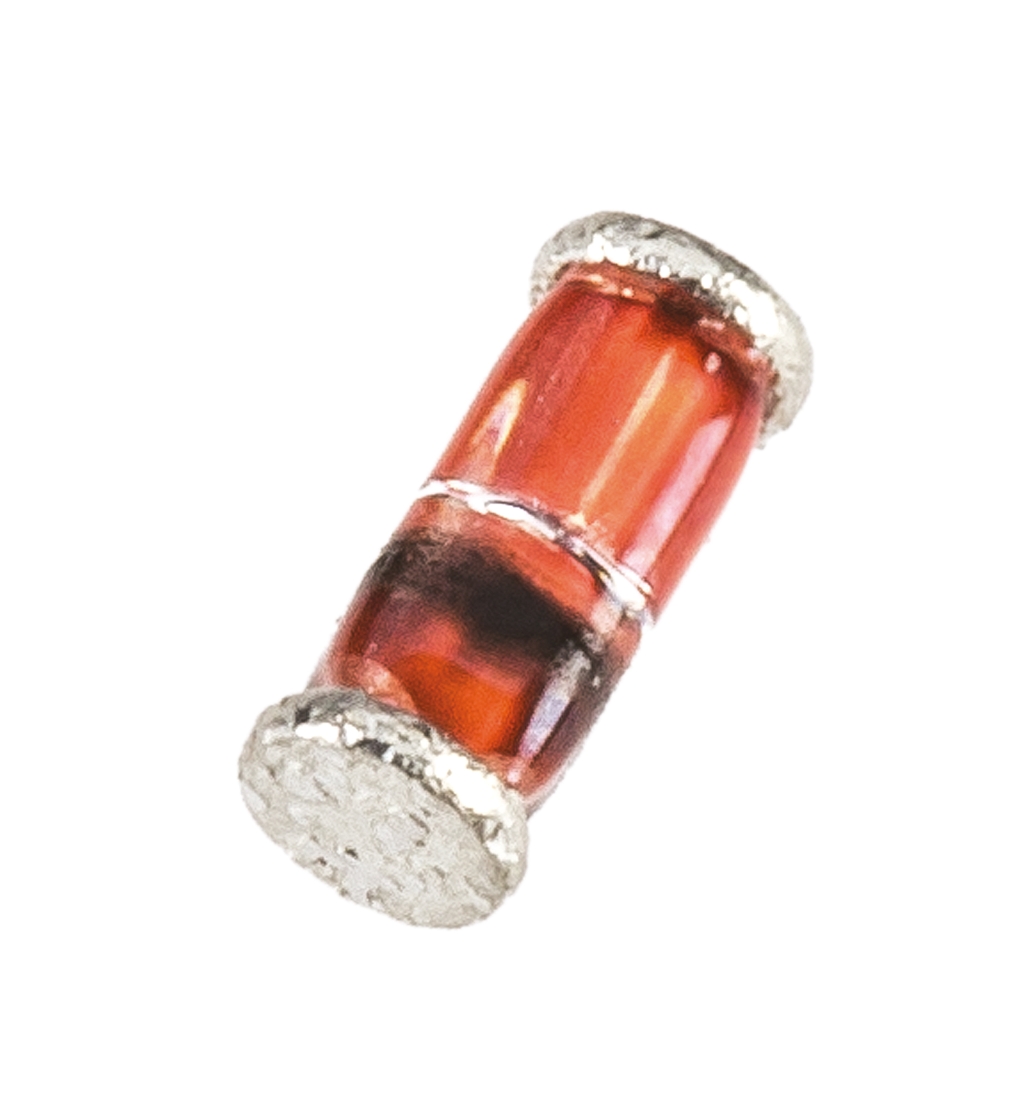

Vishay LS4148-GS08 Switching Diode, 300mA 100V, 2-Pin Quadro Melf

LS4148-GS08 Vishay  Switching Diode, 300mA 100V, 2-Pin Quadro Melf
Vishay

Product Information

Dimensions:
3.5 x 1.7 x 1.5mm
Mounting Type:
Surface Mount
Maximum Forward Current:
300mA
Maximum Forward Voltage Drop:
1V
Height:
1.5mm
Width:
1.7mm
Length:
3.5mm
Package Type:
Quadro Melf
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Reverse Voltage:
100V
Maximum Operating Temperature:
+175 °C
Diode Configuration:
Single
Pin Count:
2
RoHs Compliant
Checking for live stock

This is Switching Diode 300mA 100V 2-Pin Quadro Melf manufactured by Vishay. The manufacturer part number is LS4148-GS08. The given dimensions of the product include 3.5 x 1.7 x 1.5mm. The product is available in surface mount configuration. Moreover, the product has a maximum 300ma forward current . It features 1v of maximum forward voltage drop. In addition, the height is 1.5mm. Furthermore, the product is 1.7mm wide. Its accurate length is 3.5mm. The package is a sort of quadro melf. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. Moreover, the product has a maximum 100v reverse voltage . It has a maximum operating temperature of +175 °c. The diode features a single configuration. It contains 2 pins.
