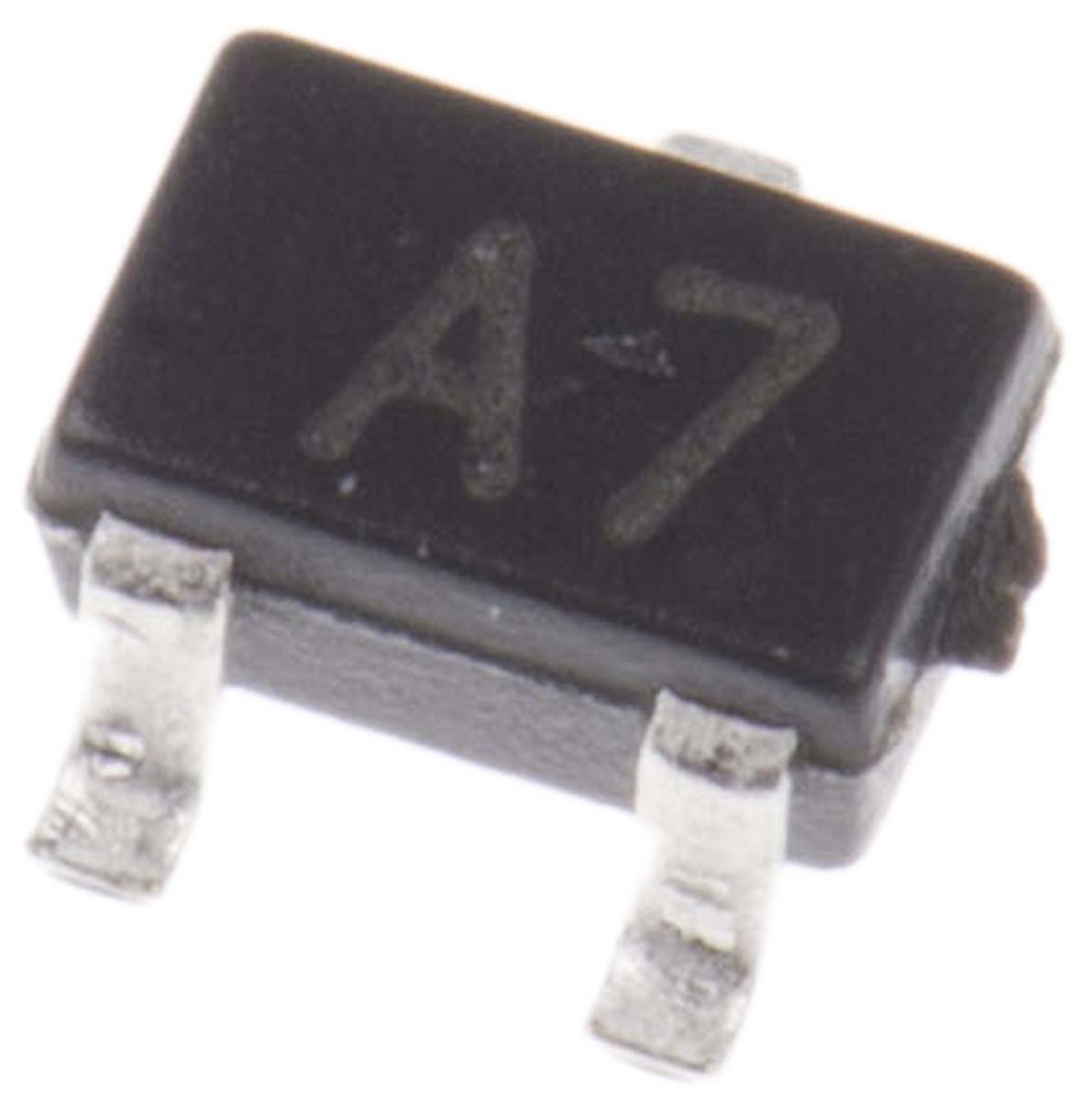

Taiwan Semi BAV99W RF Dual Small Signal Diode, Series, 130 mA, 150 mA 85V, 3-Pin SOT-323

BAV99W-RF Taiwan Semi BAV99W RF Dual Small Signal Diode, Series, 130 mA, 150 mA 85V, 3-Pin SOT-323
BAV99W RF
Taiwan Semiconductor

Product Information

Maximum Diode Capacitance:
1.5pF
Dimensions:
2.1 x 1.35 x 1mm
Mounting Type:
Surface Mount
Diode Technology:
Silicon Junction
Maximum Forward Current:
130 mA, 150 mA
Maximum Forward Voltage Drop:
1.25V
Height:
1mm
Width:
1.35mm
Length:
2.1mm
Package Type:
SOT-323 (SC-70)
Number of Elements per Chip:
2
Maximum Reverse Voltage:
85V
Maximum Operating Temperature:
+150 °C
Diode Configuration:
Series
Pin Count:
3
RoHs Compliant
Checking for live stock

This is Taiwan Semi Dual Small Signal Diode Series 130 mA 150 mA 85V 3-Pin SOT-323 manufactured by Taiwan Semiconductor. The manufacturer part number is BAV99W RF. It has a maximum 1.5pf diode capacitance . The given dimensions of the product include 2.1 x 1.35 x 1mm. The product is available in surface mount configuration. The product utilizes silicon junction diode technology. Moreover, the product has a maximum 130 ma, 150 ma forward current . It features 1.25v of maximum forward voltage drop. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.1mm. The package is a sort of sot-323 (sc-70). It consists of 2 elements per chip. Moreover, the product has a maximum 85v reverse voltage . It has a maximum operating temperature of +150 °c. The diode features a series configuration. It contains 3 pins.

pdf icon
BAV99W, Small Signal Switching Diode Array Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search BAV99W RF on website for other similar products.
We accept all major payment methods for all products including ET14115471. Please check your shopping cart at the time of order.
You can order Taiwan Semiconductor brand products with BAV99W RF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Switching Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Taiwan Semi BAV99W RF Dual Small Signal Diode, Series, 130 mA, 150 mA 85V, 3-Pin SOT-323. You can also check on our website or by contacting our customer support team for further order details on Taiwan Semi BAV99W RF Dual Small Signal Diode, Series, 130 mA, 150 mA 85V, 3-Pin SOT-323.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14115471 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Taiwan Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14115471.
Yes. We ship BAV99W RF Internationally to many countries around the world.
