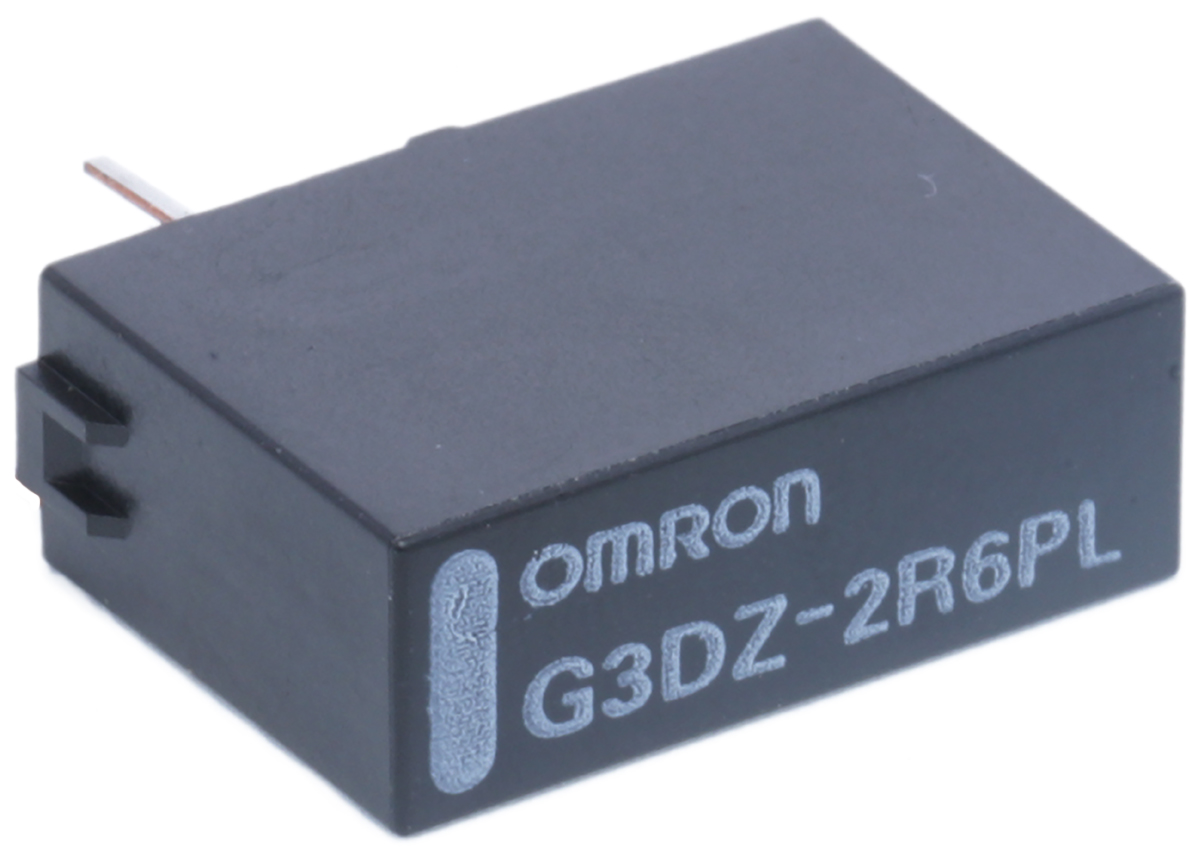

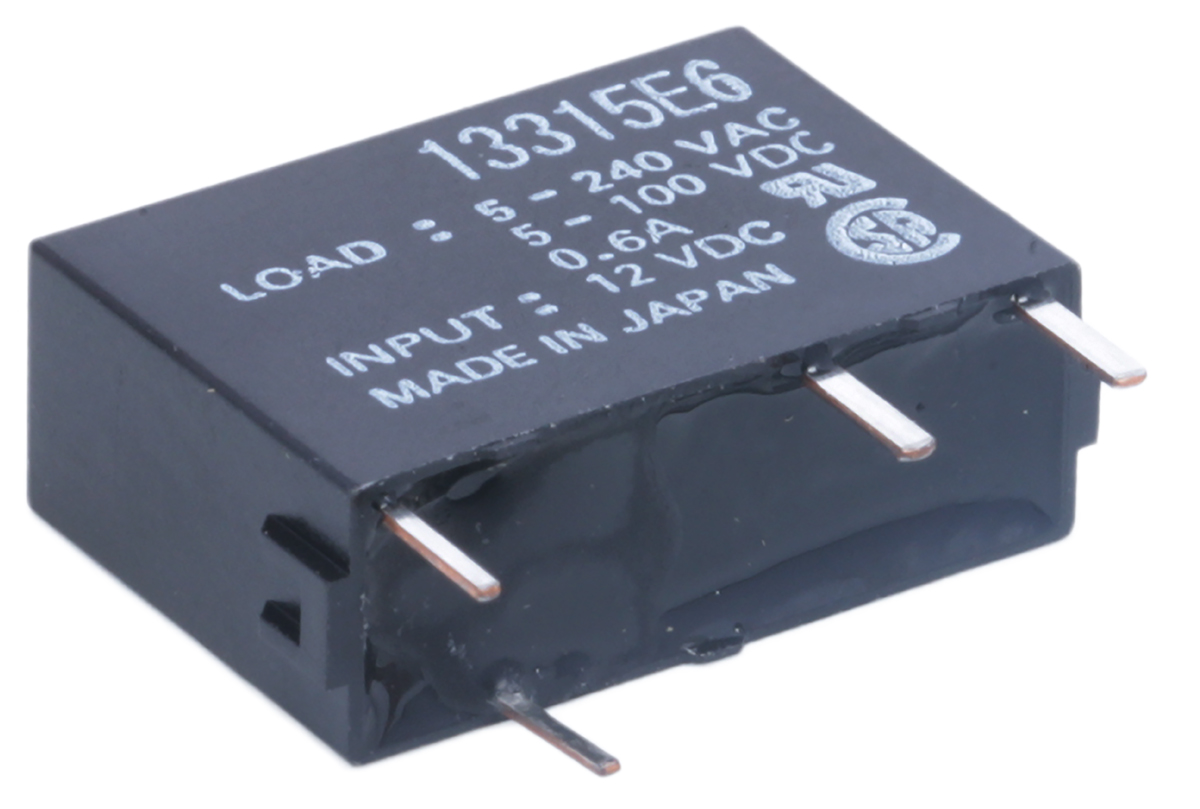

Omron G3DZ PCB Mount Solid State Relay, 0.6 A Load, 264 V ac Load, 12 V dc Control

G3DZ-2R6PL-DC12 Omron G3DZ PCB Mount Solid State Relay, 0.6 A Load, 264 V ac Load, 12 V dc Control
G3DZ-2R6PL DC12
G3DZ-2R6PL DC12
Omron

Product Information

Dimensions:
18.5 x 6.5 x 12.5mm
Maximum Load Voltage:
264 V ac
Output Device:
MOSFET
Load Voltage Range:
3 → 125 V dc, 3 → 264V ac
Off State Leakage Current:
10 μA
Maximum Operating Temperature:
+85°C
Terminal Type:
Through Hole
Control Voltage Range:
9.6 → 14.4 V dc
Operating Temperature Range:
-30 → +85°C
Minimum Load Current:
100 μA
Contact Configuration:
SPST
Length:
18.5mm
Maximum Turn On Time:
6ms
Maximum Load Current:
0.6 A
Mounting Type:
PCB Mount
Series:
G3DZ
Depth:
6.5mm
Height:
12.5mm
Minimum Operating Temperature:
-30°C
Maximum Control Voltage:
12 V dc
RoHs Compliant
Checking for live stock

This is G3DZ PCB Mount Solid State Relay 0.6 A Load 264 V ac Load 12 V dc Control manufactured by Omron. The manufacturer part number is G3DZ-2R6PL DC12. The given dimensions of the product include 18.5 x 6.5 x 12.5mm. While its maximum load voltage is 264 v ac. Its output device includes mosfet. Its load voltage range is about 3 → 125 v dc, 3 → 264v ac . Additionally, its off state leakage current is 10 μa . It has a maximum operating temperature of +85°c. The terminal is a through hole type. Moreover, it has a typical 9.6 → 14.4 v dc control voltage range . The product has -30 → +85°c of operating temperature range. The product has a minimum 100 μa load current . The contact is equipped with spst configuration. Its accurate length is 18.5mm. The product has a maximum 6ms turn on time . It carries 0.6 a maximum load current. The product is available in pcb mount configuration. The product g3dz, is a highly preferred choice for users. The product comes in 6.5mm depth. In addition, the height is 12.5mm. Whereas, the minimum operating temperature of the product is -30°c. The product has a maximum 12 v dc control voltage .

pdf icon
Datasheet(Technical Reference)
pdf icon
Omron Types of Solid State Relay(Technical Reference)
