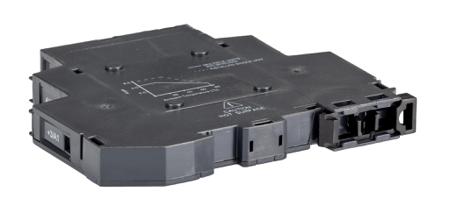

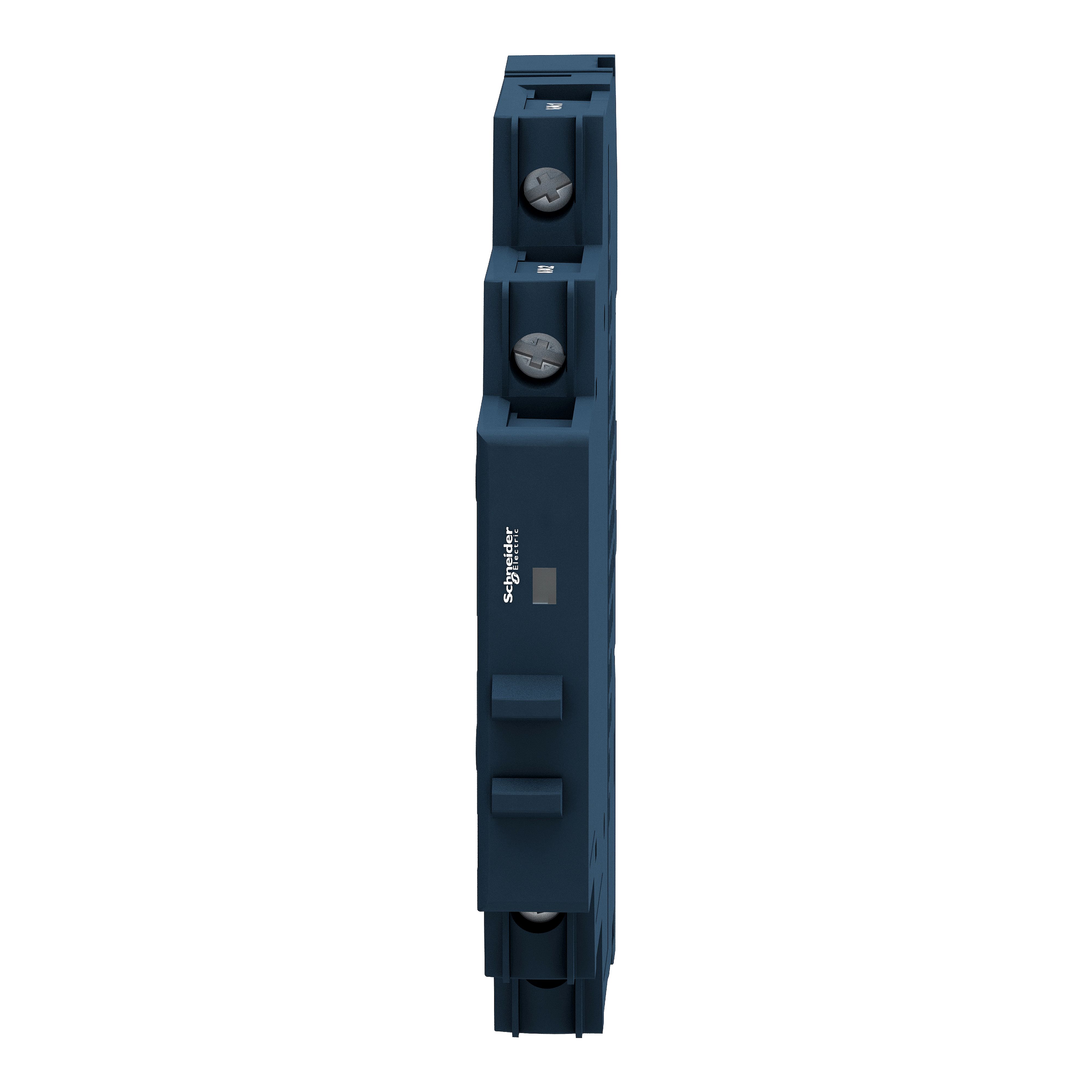

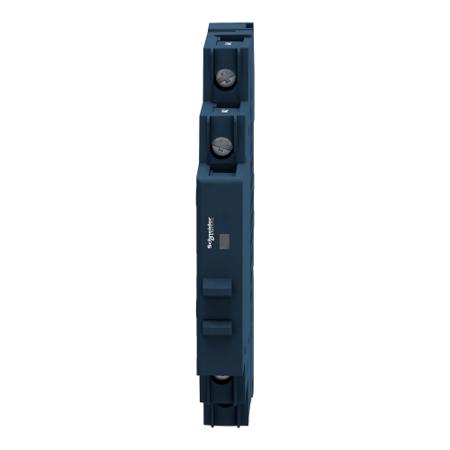

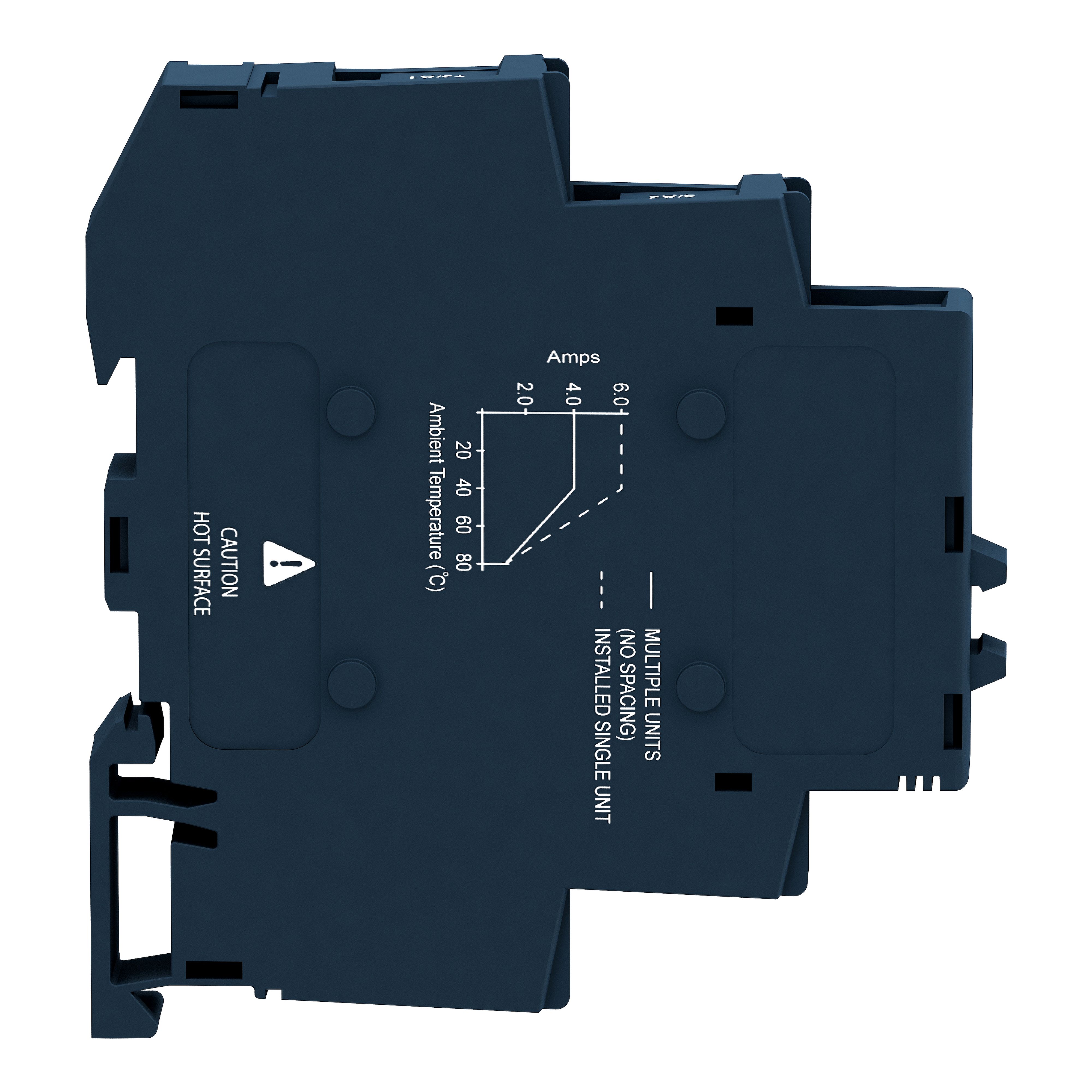

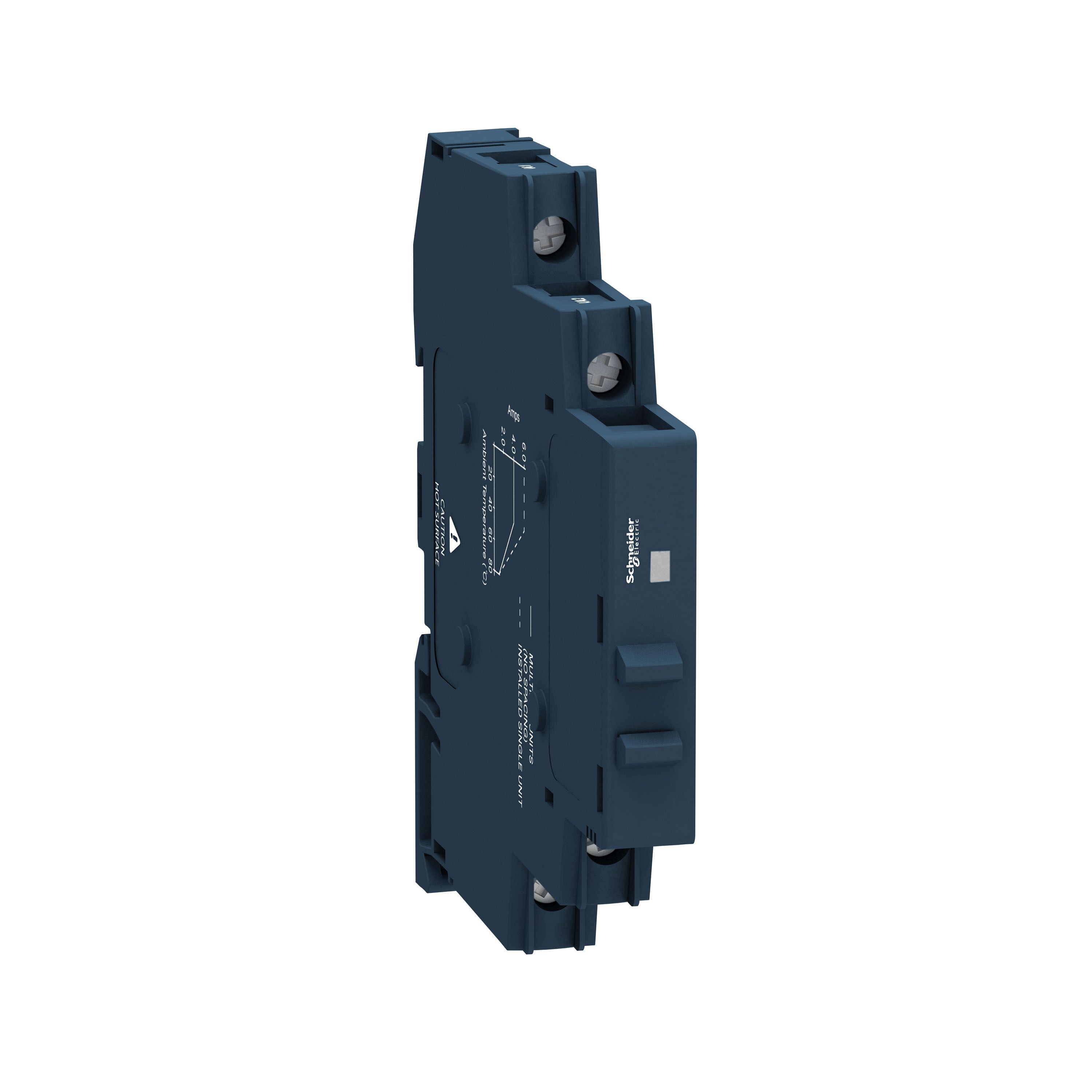

Schneider Electric 6 A SPNO Solid State Relay, DC Switching, DIN Rail MOSFET, 60 V dc Maximum Load

SSM1D26BD Schneider Electric 6 A SPNO Solid State Relay, DC Switching, DIN Rail MOSFET, 60 V dc Maximum Load
SSM1D26BD
SSM1D26BD
Schneider Electric

Product Information

Dimensions:
11.02 x 83.7 x 87.66mm
Relay Type:
Single Channel Relay
Capacitance:
10pF
Range:
Harmony Solid State Relays
Maximum Load Voltage:
60 V dc
Output Device:
MOSFET
Load Voltage Range:
1 → 60V dc
Standards Met:
CE, CSA, UL
Minimum Control Voltage:
4 V dc
Off State Leakage Current:
0.1 mA
Switching Type:
DC
Maximum Operating Temperature:
+80°C
Terminal Type:
Screw
Control Voltage Range:
4 → 32 V dc
Minimum Operating Temperature:
-30°C
Operating Temperature Range:
-30 → +80°C
Minimum Load Current:
0.0025 A
Contact Configuration:
SPST
Length:
11.02mm
Maximum Turn On Time:
0.6ms
Special Features:
Integrated Heat Sinks for Effective Thermal Management & Space Savings
Maximum Load Current:
6 A
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
DIN Rail
Series:
Harmony Relay
Depth:
83.7mm
Height:
87.7mm
Maximum Control Voltage:
32 V dc
Number of Poles:
1
Minimum Load Voltage:
1 V dc
RoHs Compliant
Checking for live stock

This is 6 A SPNO Solid State Relay DC Switching DIN Rail MOSFET 60 V dc Maximum Load manufactured by Schneider Electric. The manufacturer part number is SSM1D26BD. The given dimensions of the product include 11.02 x 83.7 x 87.66mm. This is basically a single channel relay. It provides a 10pf of capacitance value. It features harmony solid state relays range. While its maximum load voltage is 60 v dc. Its output device includes mosfet. Its load voltage range is about 1 → 60v dc . The product complies with all safety standards, such as ce, csa, ul. Additionally, it has a minimum 4 v dc control voltage . Additionally, its off state leakage current is 0.1 ma . This product uses dc switching mechanism. It has a maximum operating temperature of +80°c. The terminal is a screw type. Moreover, it has a typical 4 → 32 v dc control voltage range . Whereas, the minimum operating temperature of the product is -30°c. The product has -30 → +80°c of operating temperature range. The product has a minimum 0.0025 a load current . The contact is equipped with spst configuration. Its accurate length is 11.02mm. The product has a maximum 0.6ms turn on time . The product also provides special features, such as integrated heat sinks for effective thermal management & space savings. It carries 6 a maximum load current. Better World Verification Options - green premium. Is it a better world product? yes. The product is available in din rail configuration. The product harmony relay, is a highly preferred choice for users. The product comes in 83.7mm depth. In addition, the height is 87.7mm. The product has a maximum 32 v dc control voltage . It has equipped with 1 poles. It carries up to 1 v dc minimum load voltage.

pdf icon
Datasheet_SSM1D26BD(Technical Reference)
pdf icon
Zelio Selection Guide(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
Catalogue - Harmony Solid State Relays(Technical Reference)
pdf icon
Instruction Sheet - SSM1D26BD(Technical Reference)
