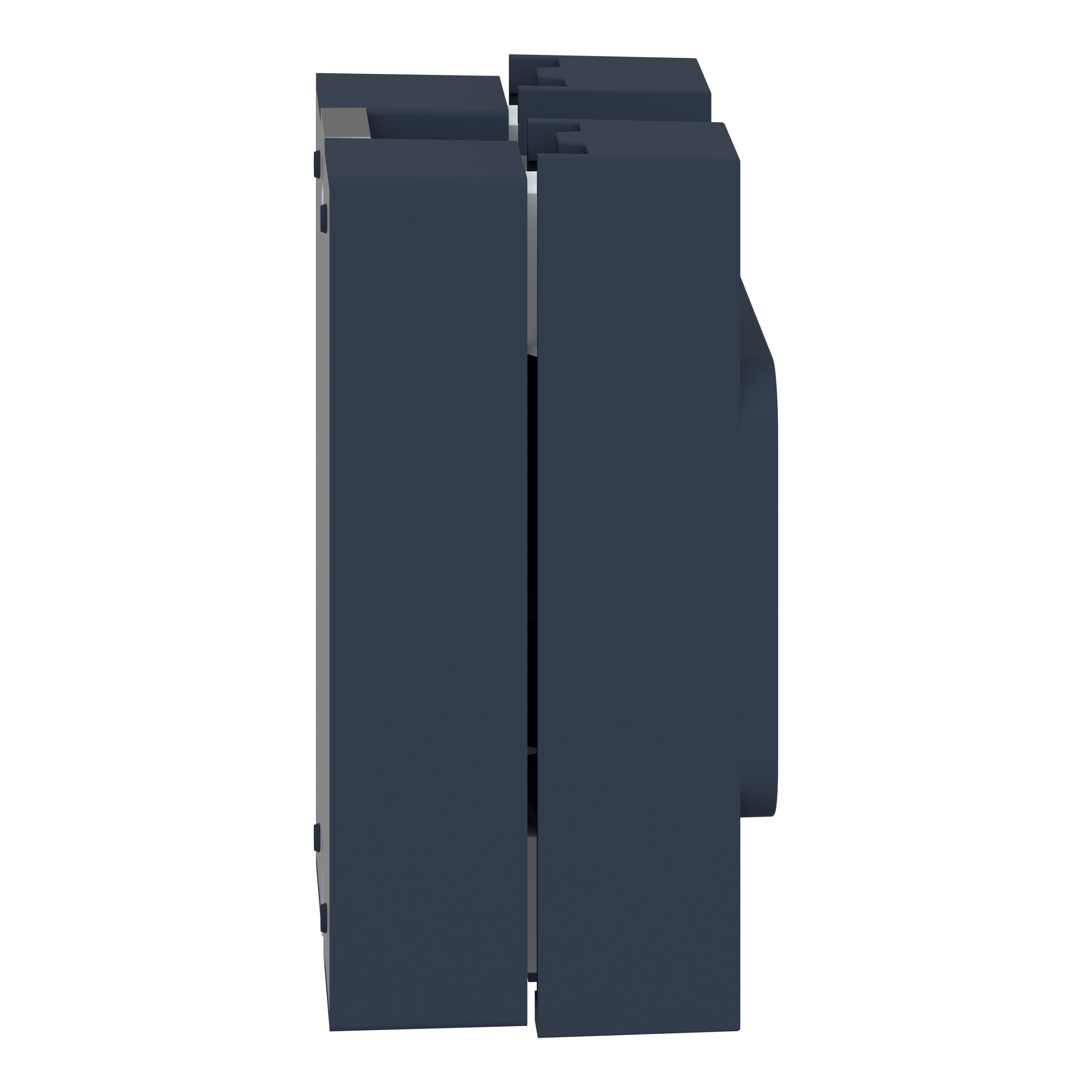

Schneider Electric 25 A SPNO Solid State Relay, Zero Voltage, Panel Mount SCR, 300 V ac Maximum Load

SSP1A125BD Schneider Electric 25 A SPNO Solid State Relay, Zero Voltage, Panel Mount SCR, 300 V ac Maximum Load
Schneider Electric

Product Information

Dimensions:
44.45 x 34.29 x 58.89mm
Relay Type:
Solid State Relay
Capacitance:
10pF
Maximum Load Voltage:
300 V ac
Output Device:
SCR
Load Voltage Range:
24 → 300V ac
Standards Met:
CE, CSA, EAC, EN/IEC, REACH, UL
Minimum Control Voltage:
3 V dc
Off State Leakage Current:
<= 1 mA
Switching Type:
Zero Voltage
Terminal Type:
Screw
Control Voltage Range:
3 → 32 V dc
Operating Temperature Range:
-40 → +80°C
Minimum Load Current:
0.15 A
Contact Configuration:
SPST
Length:
44.5mm
Maximum Turn On Time:
0.5 cycles
Special Features:
Green LED for Input Visualization
Maximum Load Current:
25 A
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
Panel Mount
Series:
Harmony Relay
Depth:
34.3mm
Height:
58.9mm
Maximum Control Voltage:
32 V dc
Number of Poles:
1
Minimum Load Voltage:
24 V ac
RoHs Compliant
Checking for live stock

This is 25 A SPNO Solid State Relay Zero Voltage Panel Mount SCR 300 V ac Maximum Load manufactured by Schneider Electric. The manufacturer part number is SSP1A125BD. The given dimensions of the product include 44.45 x 34.29 x 58.89mm. This is basically a solid state relay. It provides a 10pf of capacitance value. While its maximum load voltage is 300 v ac. Its output device includes scr. Its load voltage range is about 24 → 300v ac . The product complies with all safety standards, such as ce, csa, eac, en/iec, reach, ul. Additionally, it has a minimum 3 v dc control voltage . Additionally, its off state leakage current is <= 1 ma . This product uses zero voltage switching mechanism. The terminal is a screw type. Moreover, it has a typical 3 → 32 v dc control voltage range . The product has -40 → +80°c of operating temperature range. The product has a minimum 0.15 a load current . The contact is equipped with spst configuration. Its accurate length is 44.5mm. The product has a maximum 0.5 cycles turn on time . The product also provides special features, such as green led for input visualization. It carries 25 a maximum load current. Better World Verification Options - green premium. Is it a better world product? yes. The product is available in panel mount configuration. The product harmony relay, is a highly preferred choice for users. The product comes in 34.3mm depth. In addition, the height is 58.9mm. The product has a maximum 32 v dc control voltage . It has equipped with 1 poles. It carries up to 24 v ac minimum load voltage.
