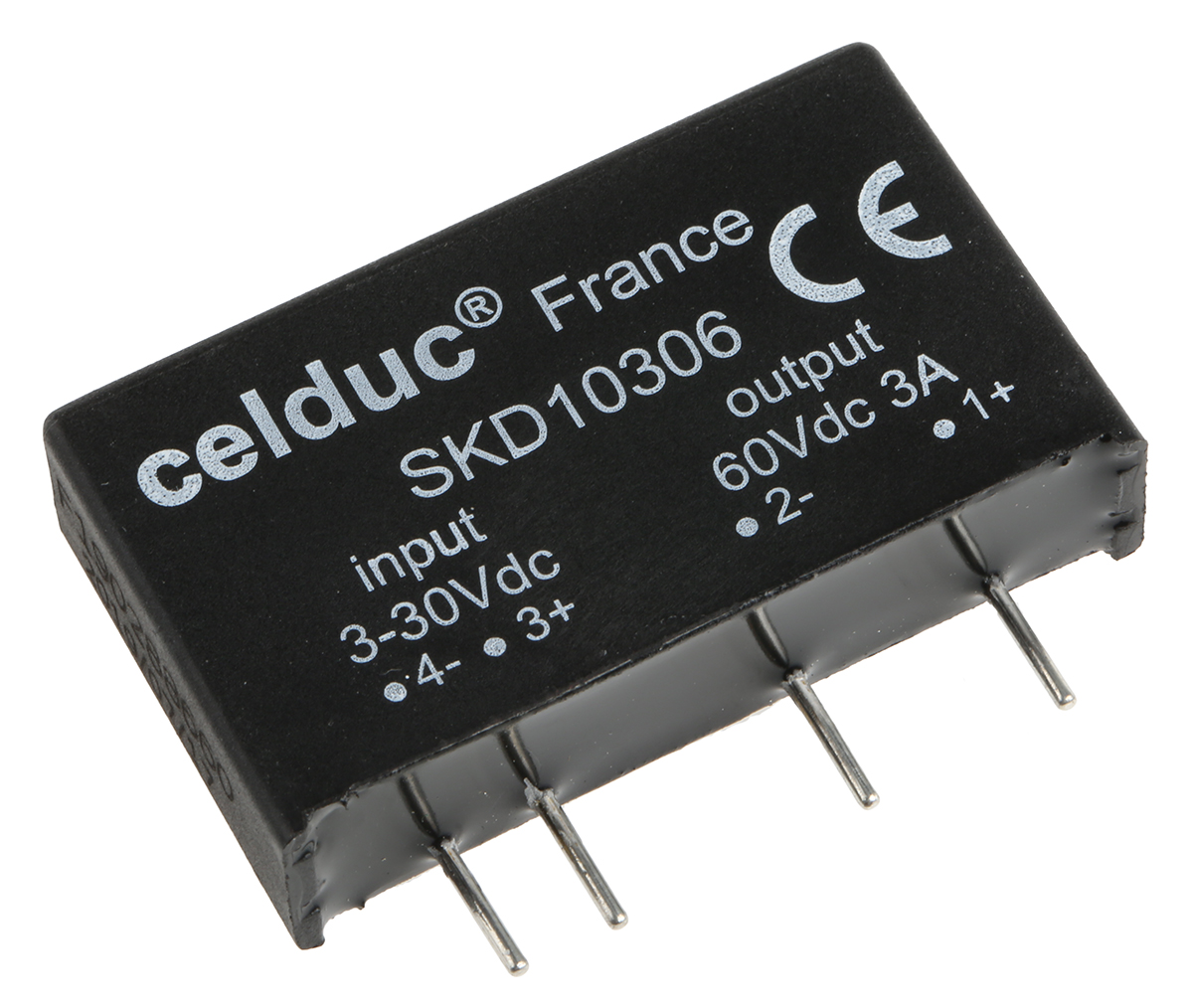

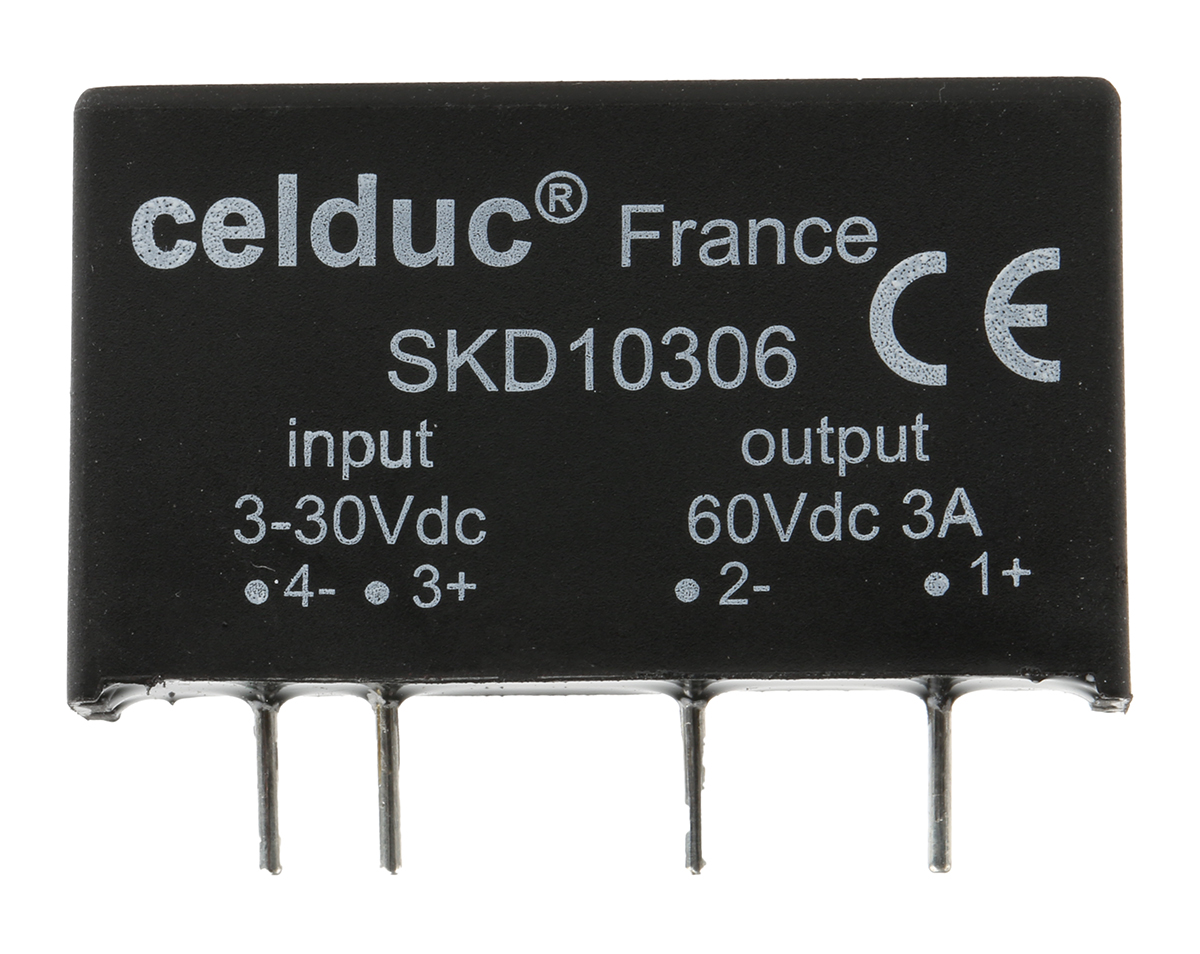

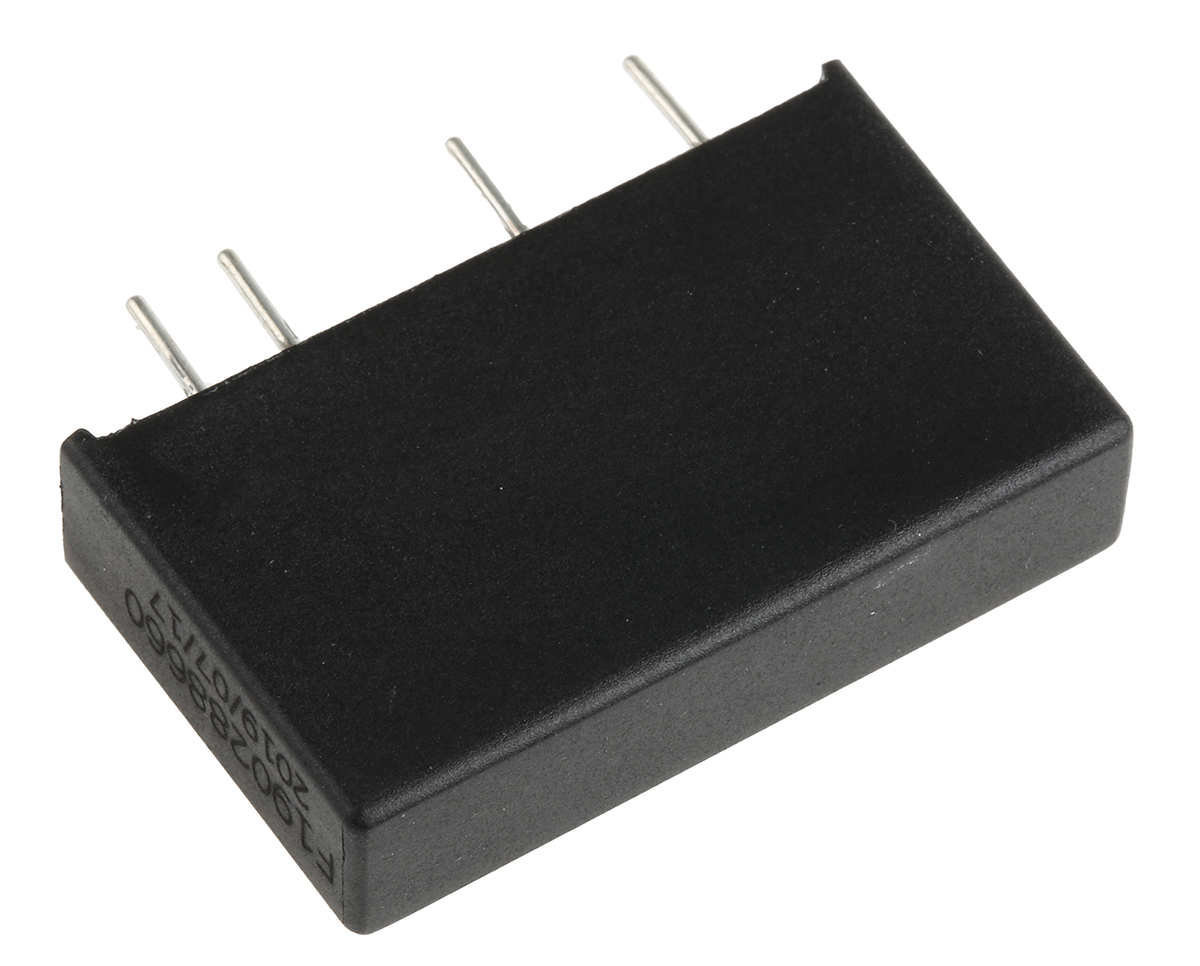

This is 3 A Solid State Relay PCB Mount Bipolar Transistor 60 V dc Maximum Load manufactured by Celduc. The manufacturer part number is SKD10306. The given dimensions of the product include 43.2 x 10.2 x 25.4mm. This is basically a dc solid state relay. It features sk range. While its maximum load voltage is 60 v dc. Its output device includes bipolar transistor. Its load voltage range is about 12 → 60v dc . The product complies with all safety standards, such as ce, eac. Additionally, it has a minimum 3 v dc control voltage . Additionally, its off state leakage current is 1 ma . This product uses dc switching mechanism. It has a maximum operating temperature of +80°c. The terminal is a pcb pin type. Moreover, it has a typical 3 → 30 v dc control voltage range . The product has -40 → +80°c of operating temperature range. The product has a minimum 5 ma load current . Its accurate length is 43.2mm. The product has a maximum 200 μs turn on time . It carries 3 a maximum load current. The product is available in pcb mount configuration. The product sk, is a highly preferred choice for users. The product comes in 10.2mm depth. In addition, the height is 25.4mm. Whereas, the minimum operating temperature of the product is -40°c. The product has a maximum 30 v dc control voltage . It has equipped with 1 poles. It carries up to 12 v dc minimum load voltage.
For more information please check the datasheets.
