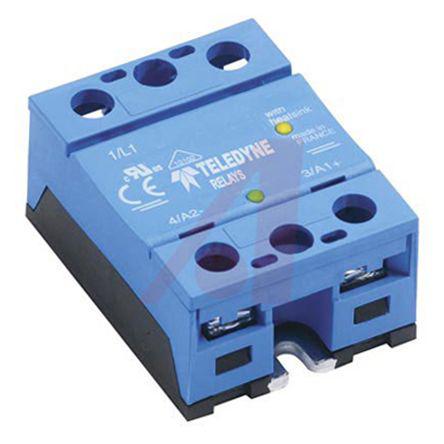

Teledyne 25 A Solid State Relay, Zero Crossing, Panel Mount, 275 V ac Maximum Load

SH24D25 Teledyne 25 A Solid State Relay, Zero Crossing, Panel Mount, 275 V ac Maximum Load
SH24D25
SH24D25
ET16810061
ET16810061
Teledyne

Product Information

Dimensions:
45 x 30 x 59.4mm
Relay Type:
Solid State Relay
Maximum Load Voltage:
275 V ac
Load Voltage Range:
12 → 275V ac
Standards Met:
EN 60947-4-3, EN60950/VDE0805, IEC 947-4-3
Minimum Control Voltage:
3 V dc
Package Style:
HIP
Off State Leakage Current:
1 mA
Switching Type:
Zero Crossing
Terminal Type:
Screw
Control Voltage Range:
3 → 32 V dc
Operating Temperature Range:
-55 → +80°C
Minimum Load Current:
0.05 A rms
Length:
45mm
Maximum Turn On Time:
8.3 ms
Special Features:
Control LED, Input Protection, IP20 Touch Proof Flaps, Output Protection
Maximum Load Current:
25 A
Mounting Type:
Panel Mount
Depth:
30mm
Height:
59.4mm
Maximum Control Voltage:
32 V dc
Minimum Load Voltage:
12 V ac
RoHs Compliant
Checking for live stock

This is 25 A Solid State Relay Zero Crossing Panel Mount 275 V ac Maximum Load manufactured by Teledyne. The manufacturer part number is SH24D25. The given dimensions of the product include 45 x 30 x 59.4mm. This is basically a solid state relay. While its maximum load voltage is 275 v ac. Its load voltage range is about 12 → 275v ac . The product complies with all safety standards, such as en 60947-4-3, en60950/vde0805, iec 947-4-3. Additionally, it has a minimum 3 v dc control voltage . Its package is of hip style . Additionally, its off state leakage current is 1 ma . This product uses zero crossing switching mechanism. The terminal is a screw type. Moreover, it has a typical 3 → 32 v dc control voltage range . The product has -55 → +80°c of operating temperature range. The product has a minimum 0.05 a rms load current . Its accurate length is 45mm. The product has a maximum 8.3 ms turn on time . The product also provides special features, such as control led, input protection, ip20 touch proof flaps, output protection. It carries 25 a maximum load current. The product is available in panel mount configuration. The product comes in 30mm depth. In addition, the height is 59.4mm. The product has a maximum 32 v dc control voltage . It carries up to 12 v ac minimum load voltage.
