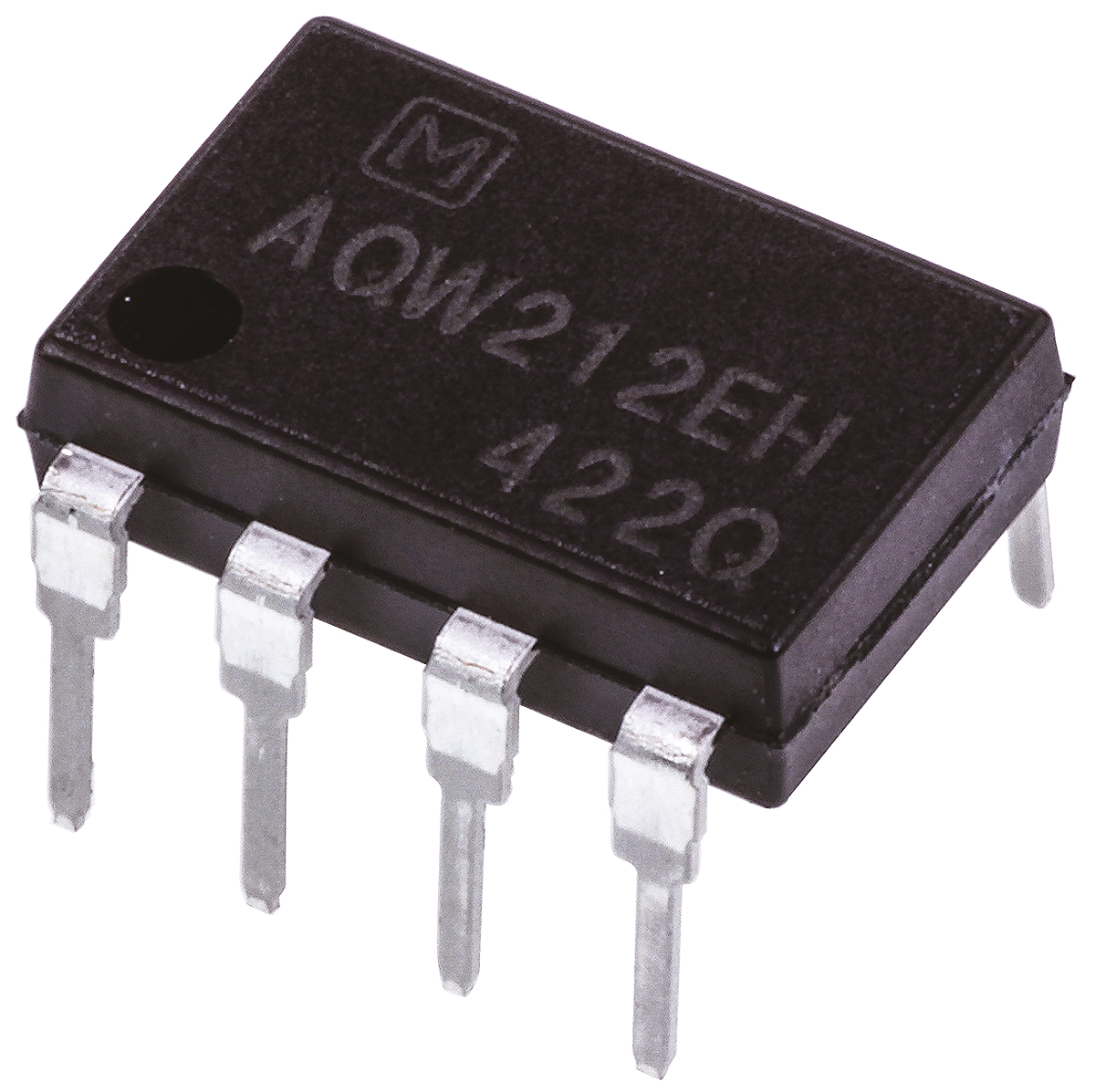

Panasonic 500 mA DPNO Solid State Relay, PCB Mount PhotoMOS, 60 V Maximum Load

AQW212EH Panasonic 500 mA DPNO Solid State Relay, PCB Mount PhotoMOS, 60 V Maximum Load
AQW212EH
Panasonic

Product Information

Dimensions:
9.86 x 6.4 x 3.2mm
Maximum Load Voltage:
60 V
Output Device:
PhotoMOS
Load Voltage Range:
60V
Minimum Control Voltage:
1.14 V
Package Style:
DIP8
Off State Leakage Current:
1 μA
Maximum Operating Temperature:
+85°C
Terminal Type:
Through Hole
Control Voltage Range:
1.14 → 1.5 V
Operating Temperature Range:
-40 → +85°C
Minimum Load Current:
0.5 A
Contact Configuration:
DPST
Length:
9.9mm
Maximum Turn On Time:
4ms
Maximum Load Current:
0.5 A
Mounting Type:
PCB Mount
Depth:
6.4mm
Height:
3.2mm
Minimum Operating Temperature:
-40°C
Maximum Control Voltage:
1.5 V
RoHs Compliant
Checking for live stock

This is 500 mA DPNO Solid State Relay PCB Mount PhotoMOS 60 V Maximum Load manufactured by Panasonic. The manufacturer part number is AQW212EH. The given dimensions of the product include 9.86 x 6.4 x 3.2mm. While its maximum load voltage is 60 v. Its output device includes photomos. Its load voltage range is about 60v . Additionally, it has a minimum 1.14 v control voltage . Its package is of dip8 style . Additionally, its off state leakage current is 1 μa . It has a maximum operating temperature of +85°c. The terminal is a through hole type. Moreover, it has a typical 1.14 → 1.5 v control voltage range . The product has -40 → +85°c of operating temperature range. The product has a minimum 0.5 a load current . The contact is equipped with dpst configuration. Its accurate length is 9.9mm. The product has a maximum 4ms turn on time . It carries 0.5 a maximum load current. The product is available in pcb mount configuration. The product comes in 6.4mm depth. In addition, the height is 3.2mm. Whereas, the minimum operating temperature of the product is -40°c. The product has a maximum 1.5 v control voltage .

pdf icon
GU-E 2 Form A (AQW21❍EH) Datasheet(Technical Reference)
