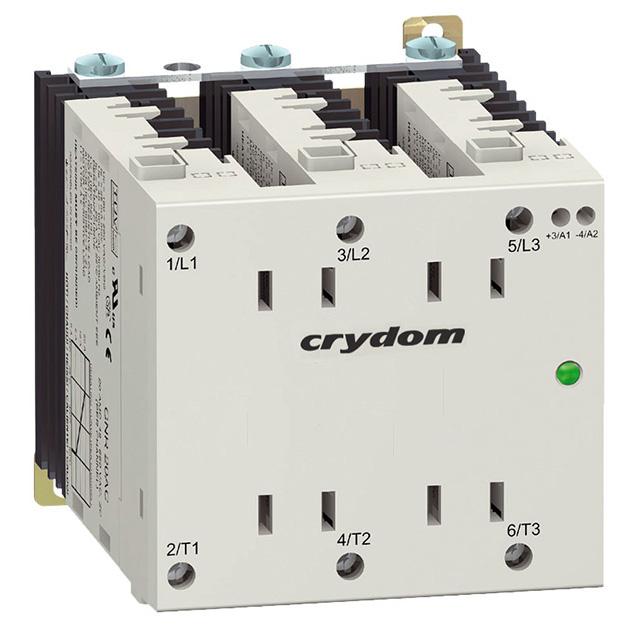

Sensata-Crydom GNR25DCZ

GNR25DCZ Sensata-Crydom
GNR25DCZ
GNR25DCZ
ET16686177
Sensata-Crydom

Product Information

Dimensions:
90 x 123.4 x 97mm
Relay Type:
Solid State Relay
Capacitance:
8pF
Maximum Load Voltage:
600 V rms
Output Device:
Triac
Load Voltage Range:
4 → 32V dc
Standards Met:
CE, CSA, UL
Minimum Control Voltage:
4 V dc
Off State Leakage Current:
0.25mArms
Switching Type:
Zero Cross
Maximum Operating Temperature:
+80°C
Terminal Type:
Screw
Control Voltage Range:
4 → 32 V dc
Operating Temperature Range:
-20 → +80°C
Minimum Load Current:
0.1 A rms
Length:
90mm
Maximum Turn On Time:
1/2ms
Special Features:
Direct Bond Copper (DBC) Substrate, LED Input Status Indicator
Maximum Load Current:
25 A rms
Mounting Type:
DIN Rail
Series:
GNR 90
Depth:
123.4mm
Height:
97mm
Minimum Operating Temperature:
-20°C
Maximum Control Voltage:
32 V dc
Number of Poles:
1
Minimum Load Voltage:
48 V rms
HTSUS:
8536.41.0060
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw Terminal
Package / Case:
Module
Voltage - Input:
4 ~ 32VDC
Load Current:
25 A
REACH Status:
REACH Affected
Output Type:
AC, Zero Cross
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
3PST-NO (3 Form A)
Mounting Type:
DIN Rail
Series:
GNR
Voltage - Load:
48 V ~ 600 V
Supplier Device Package:
-
Base Product Number:
GNR25D
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Sensata-Crydom. The manufacturer part number is GNR25DCZ. The given dimensions of the product include 90 x 123.4 x 97mm. This is basically a solid state relay. It provides a 8pf of capacitance value. While its maximum load voltage is 600 v rms. Its output device includes triac. Its load voltage range is about 4 → 32v dc . The product complies with all safety standards, such as ce, csa, ul. Additionally, it has a minimum 4 v dc control voltage . Additionally, its off state leakage current is 0.25marms . This product uses zero cross switching mechanism. It has a maximum operating temperature of +80°c. The terminal is a screw type. Moreover, it has a typical 4 → 32 v dc control voltage range . The product has -20 → +80°c of operating temperature range. The product has a minimum 0.1 a rms load current . Its accurate length is 90mm. The product has a maximum 1/2ms turn on time . The product also provides special features, such as direct bond copper (dbc) substrate, led input status indicator. It carries 25 a rms maximum load current. The product is available in din rail configuration. The product gnr 90, is a highly preferred choice for users. The product comes in 123.4mm depth. In addition, the height is 97mm. Whereas, the minimum operating temperature of the product is -20°c. The product has a maximum 32 v dc control voltage . It has equipped with 1 poles. It carries up to 48 v rms minimum load voltage. It is assigned with possible HTSUS value of 8536.41.0060. The product is rohs3 compliant. Moreover, it has screw terminal terminal style. Moreover, the product comes in module. The possible product's input voltage is 4 ~ 32vdc. It has a typical 25 a load current. In addition, it is reach affected. Furthermore, it has aac, zero cross output. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). It has an integral 3pst-no (3 form a) circuit. The product gnr, is a highly preferred choice for users. The given load voltage is 48 v ~ 600 v. Moreover, it corresponds to gnr25d, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Declaration of Conformity 2014/35/EU(Technical Reference)
pdf icon
CE Declaration of Conformity (2014/35/EU, 2015/863/EU)(Technical Reference)
pdf icon
End of Life 18/DEC/2023(PCN Obsolescence/ EOL)
pdf icon
GNR 90MM Series(Datasheets)
pdf icon
CE Declaration of Conformity(Other Related Documents)
pdf icon
Alternative ground screw 18/APR/2022(PCN Design/Specification)
