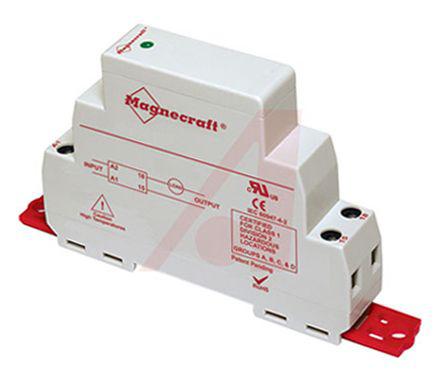

Schneider Electric 10 A SPNO Solid State Relay, Zero Crossing, DIN Rail SCR, 600 V ac Maximum Load

861HSSR610-AC-1 Schneider Electric 10 A SPNO Solid State Relay, Zero Crossing, DIN Rail SCR, 600 V ac Maximum Load
Schneider Electric

Product Information

Dimensions:
17.6 x 65 x 90mm
Maximum Load Voltage:
600 V ac
Output Device:
SCR
Load Voltage Range:
48 → 600V ac
Minimum Control Voltage:
90 V ac
Off State Leakage Current:
10 mA
Switching Type:
Zero Crossing
Terminal Type:
Screw
Minimum Load Current:
50 mA
Operating Temperature Range:
-30 → +80°C
Control Voltage Range:
90 → 280 V ac
Contact Configuration:
SPNO
Length:
17.6mm
Maximum Turn On Time:
8.3 ms
Maximum Load Current:
10 A
Mounting Type:
DIN Rail
Depth:
65mm
Height:
90mm
Maximum Control Voltage:
280 V ac
Minimum Load Voltage:
48 V ac
Checking for live stock

This is 10 A SPNO Solid State Relay Zero Crossing DIN Rail SCR 600 V ac Maximum Load manufactured by Schneider Electric. The manufacturer part number is 861HSSR610-AC-1. The given dimensions of the product include 17.6 x 65 x 90mm. While its maximum load voltage is 600 v ac. Its output device includes scr. Its load voltage range is about 48 → 600v ac . Additionally, it has a minimum 90 v ac control voltage . Additionally, its off state leakage current is 10 ma . This product uses zero crossing switching mechanism. The terminal is a screw type. The product has a minimum 50 ma load current . The product has -30 → +80°c of operating temperature range. Moreover, it has a typical 90 → 280 v ac control voltage range . The contact is equipped with spno configuration. Its accurate length is 17.6mm. The product has a maximum 8.3 ms turn on time . It carries 10 a maximum load current. The product is available in din rail configuration. The product comes in 65mm depth. In addition, the height is 90mm. The product has a maximum 280 v ac control voltage . It carries up to 48 v ac minimum load voltage.
