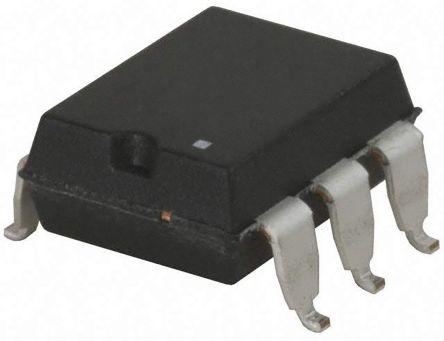

This is 250 mA rms SP-NC Solid State Relay AC Surface Mount Power Switch manufactured by IXYS. The manufacturer part number is CPC1972GS. The given dimensions of the product include 8.382 x 6.35 x 3.302mm. This is basically a power relay. It provides a 3pf of capacitance value. Its output device includes power switch. The product complies with all safety standards, such as csa, ul file e69938. Additionally, it has a minimum 5 v rms control voltage . Additionally, its off state leakage current is 1 μa . This product uses ac switching mechanism. The terminal is a pcb pin type. Moreover, it has a typical 5 → 550 v rms control voltage range . The product has -40 → +85°c of operating temperature range. The product has a minimum 5 ma rms load current . The contact is equipped with sp-nc configuration. Its accurate length is 8.38mm. The product has a maximum 0.5 cycles turn on time . The product also provides special features, such as ac output, dc control, high noise immunity, low emi and rfi generation, machine insertable, optically isolated, ttl & cmos compatible, wave solderable, zero crossing detection. It carries 250 ma rms maximum load current. The product is available in surface mount configuration. The product comes in 6.35mm depth. In addition, the height is 3.3mm. The product has a maximum 550 v rms control voltage . It has equipped with 1 poles.
For more information please check the datasheets.
